Install the latest updates for AutoCAD (see Where to get Product Updates, Add-ons, and Enhancements). Reset AutoCAD to defaults (see How to reset AutoCAD to defaults). Repair or reinstall AutoCAD (see How to repair or reinstall an AutoCAD installation).
How do you add a draw order in AutoCAD?
The draw order of objects includes both their display order and plotting order.
- Click Home tab Modify panel drop-down list.
- Click Draw Order, and from the drop-down list, choose one of the options.
- Select the objects that you want to modify, and press Enter.
Where is draw order in AutoCAD?
DRAWORDER command description: You can run the DRAWORDER command in any localized version of AutoCAD by typing _DRAWORDER in the commandline.
Why can’t I type commands in AutoCAD?
This issue is usually caused by a few things either the Level of Detail is turned on in the drawing your working in and this can cause the issue or a possible corrupt user profile. If this doesn’t resolve the issue then you’ll need to try resetting your AutoCAD user profile.
What is Draworder in AutoCad?
Moves the selected objects to the top of the order of objects in the drawing. Back. Moves the selected objects to the bottom of the order of objects in the drawing.
Can you explode an xref?
You cannot explode an xref, however, you can explode a block. First convert the xref into a block by binding it to the drawing then explode it.
How do I access my Matchprop settings?
In order to access the settings for MATCHPROP:
- Type MATCHPROP, select an object, right-click and select SETTINGS.
- Select an element with the desired properties.
- You cannot have anything selected.
- Type MATCHPROP, right-click and select SETTINGS.
What is Draworderctl?
Use this setting to improve the speed of editing operations in large drawings. The commands that are affected by inheritance are BREAK, FILLET, HATCH, HATCHEDIT, EXPLODE, TRIM, JOIN, PEDIT, and OFFSET. Provides full draw order display. Turns on the correct draw order of objects, and turns on draw order inheritance.
How do I enable type commands in AutoCAD?
In the Command prompt text box, type the full command name and press Enter or Spacebar. If automatic command completion is turned on, start typing the command. Press Enter when the correct command is highlighted in the command text area.
What does UCS do in Autocad?
The user coordinate system (UCS) establishes the location and orientation of a movable Cartesian coordinate system. The UCS is an essential tool for many precision operations. By default, the UCS icon appears in the lower-left corner of the drawing area for the current model viewport.
How do you explode xrefs?
If you Ctrl+Right Click on the xref, and click Xref Tools, Bind, To Original Layers, it will add the entities to your drawing. Neil uses the correct term of Bind, but it will do what your wanting ie; “explode” the xref.

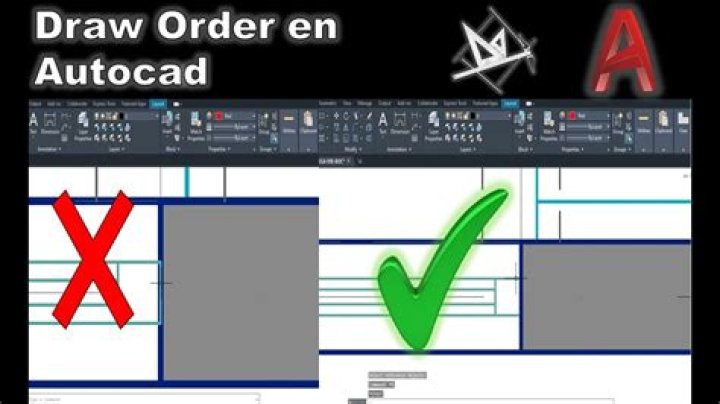

Why is my draw order not working in AutoCAD?
The draw order functions in AutoCAD do not work properly. Either the objects do not move when “Send to Back” and “Bring to Front” are chosen, or the options are missing or grayed out. Updates are not installed. Especially version 2019.
How do I control the display of overlapping objects in AutoCAD?
Use the DRAWORDERCTL system variable to control the default display behavior of overlapping objects. The following prompts are displayed. Specifies the objects for which you want to change the draw order.
How do I control the draw order of an overlapping object?
By default, when you create new objects from several existing ones (for example, FILLET or PEDIT), the resulting objects assume the draw order of the object that you selected first. Use the DRAWORDERCTL system variable to control the default display behavior of overlapping objects. The following prompts are displayed.
