Cause: If the fuse itself has not blown, but the fuse holder melted, it indicates that the fuse holder was making poor contact with the fuse. The simple answer is: if the fuse holder melted, it is due to a lost connection, not the power wires drawing too much current.
Why is my fuse box getting hot?
The fuse getting hot indicates a poor connection at the fuse (or a faulty fuse). Clean the contacts in the fuse holder and ensure there is enough spring pressure to hold the contact pads firmly against the fuse, and that the feed cable connects to the fuse pads with no resistance. And fit a new fuse.
Can a fuse holder go bad?
Fuses degrade with time and will eventually fail. A blown fuse does not always mean that there is something wrong with the equipment, and in this article we will show you how to replace such a fuse. However, do not keep replacing a fuse if it blows immediately after you replace it.
How do you fix a melted fuse?
Follow these easy steps to fix a blown fuse:
- Unplug electrical appliances. First and foremost, it’s important to identify where the outage occurred.
- Turn the power off. Next, you will need to turn off the main power to the fuse box.
- Find the fuse box.
- Identify the broken fuse.
- Replace the fuse.
- Test your new setup.
Why is my amp wire melting?
Registered. the amp is drawing too much current for the conductor to safely handle, either the amp is not functioning correctly and drawing too much current or the circuit feeding the amp is too small, one of the two..
What would cause a power wire to melt?
When electrical connections are installed incorrectly of they are not connected properly then heat can accumulate. Conductors and wires will heat up where the insulation of the wire can begin to melt. The wires will not be able to contain as much heat and will cause the outer insulation to melt away.
What happens if a fuse overheats?
The sensing device opens the circuit when it overheats due to excess current. The higher-rated fuse will allow more current to flow than the wires can safely handle, causing overheating and fire. This can’t happen with a circuit breaker; you flip it back on to reset it and the capacity remains the same.
Do fuses generate heat?
Both Polymeric (Positive Temperature Coefficient) PTC and traditional Fuse devices react to heat generated by the excessive current flow in a circuit. A fuse melts open, interrupting the current flow whereas a PTC limits current flow as it rises in temperature, changing from low to high resistance state.
Can a fuse be burnt but not blown?
Due to the way fuses are engineered, the likelihood that a fuse would become faulty without blowing is pretty slim, but there are rare instances in which a fuse might appear completely fine, even though no current runs through it.
What happens when a fuse melts?
First, and most commonly, when too many lights or plug-in appliances draw power from the circuit, it can overload the capacity of the fuse and cause the metal ribbon inside the fuse to melt through. The result is that all lights, outlets, and appliances powered by the circuit will go dead suddenly.
What causes a fuse to melt in a fuse holder?
Cause: If the fuse itself has not blown, but the fuse holder melted, it indicates that the fuse holder was making poor contact with the fuse. If there is significant resistance in the contact between fuse and fuse holder, a current well below the fuse rating can cause enough heat to melt an inline fuse holder. Click to see full answer.

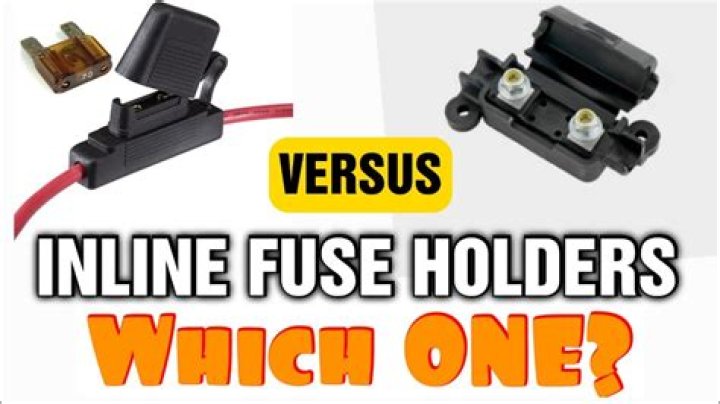

What type of fuses and fuse holders should I use?
Whilst the popular, automotive blade type fuses and holders may be okay at lower currents (e.g. 5-10A) and for higher currents (20A or more) it is essential to use good quality fuses and fuse holders. REDARC’s 40A Fuse Kit and 60A Fuse Kit are a great example.
What causes a fuse to get hot?
Heating in an electrical circuit is always caused by current flowing through a resistance. If there is significant resistance in the contact between fuse and fuse holder, current well below the fuse rating can cause enough heating to melt the fuse holder.
Why does my battery charger battery fuse melt?
The simple answer is: if the fuse holder melted, it is due to a lost connection, not the power wires drawing too much current. When installing battery management systems and battery chargers, you always need to use good quality battery fuses and fuse holders.
