Bevel gears are used in differential drives, which can transmit power to two axles spinning at different speeds, such as those on a cornering automobile. Bevel gears are used as the main mechanism for a hand drill.
Which type of gear is used in differential?

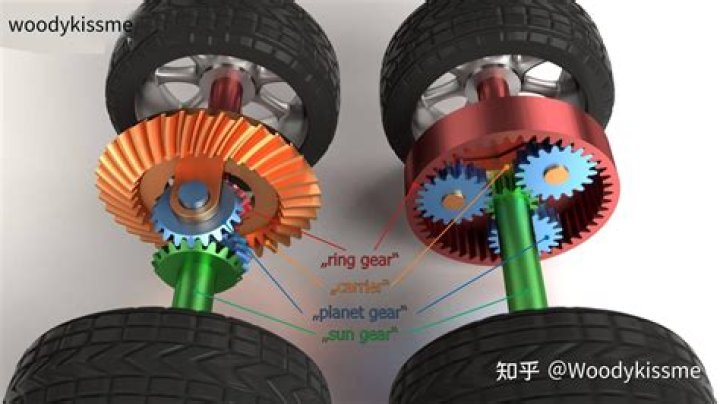

In rear-wheel drive automobiles the central drive shaft (or prop shaft) engages the differential through a hypoid gear (ring and pinion). The ring gear is mounted on the carrier of the planetary chain that forms the differential. This hypoid gear is a bevel gear that changes the direction of the drive rotation.
What is the difference between bevel and miter gears?
Bevel gears are gears designed to transmit motion between intersecting axes. Perpendicular arrangements are most common, but bevel gears can be manufactured for nearly any angle. Miter gears are bevel gears manufactured in a 1:1 ratio, with the same number of teeth on mating gears and with perpendicular axes.
Which bevel gear is most commonly used?
Straight bevel gears
Straight bevel gears are the standard for bevel gears.
What is the efficiency of bevel gear?
A straight bevel gear has a 10:1 ratio range. A straight bevel gear is approximately 96% efficient per stage.
What objects use bevel gears?
Indeed, bevel gears are important because they are used in many everyday machineries.
- Hand drills. Perhaps the most famous use of bevel gears is in hand drills.
- Cars. Specifically, bevel gears are used in the differential drives that are found in cars.
- Mechanical garage doors.
What is the rear differential?
The differential is a set of gears that transmits engine power to the wheels, while allowing them to turn at different speeds on turns. With rear-wheel-drive (RWD), the differential is between the rear wheels, connected to the transmission by a driveshaft.
How many types of bevel gears are there?
Bevel gears are most often mounted on shafts that are 90 degrees apart. Bevel gears are generally divided into 2 types, straight bevel gears and spiral bevel gears. In Straight bevel gears, the teeth are straight and parallel to the generators of the pitch cone.
What are the different types of bevel gears?
The types of bevel gears are straight, spiral, Zeroil, and hypoid. Efficiencies of bevel gears range from 97-99.5%, except for the hypoid bevel gears with an efficiency of 90-98%. A larger offset of a hypoid gear causes further decrease in efficiency. There are many terms used to describe gears.
What are the disadvantages of bevel gears?
Disadvantages
- High costs.
- Bevel gears are manufactured in pairs.
- In order to achieve high efficiency, bevel gear sets must be positioned exactly, so the shafts must be adjusted very precisely.
- Limited translation range.
- Bevel gears are not recommended for high-speed reduction.
Which type of gear is most efficient?
Gear Efficiency Comparison Table
| No | Type | Efficiency Range |
|---|---|---|
| 1 | Spur | 94-98% |
| 2 | Straight Bevel | 93-97% |
| 3 | Spiral Bevel | 95-99% |
| 4 | Worm | 90-50% |
What is a bevel gear and how does it work?
Bevel gears are gears where the axes of the two shafts intersect and the tooth-bearing faces of the gears themselves are conically shaped. Bevel gears are most often mounted on shafts that are 90 degrees apart, but can be designed to work at other angles as well. The pitch surface of bevel gears is a cone.
When are bevel gears used?
Prev NEXT. Bevel gears are useful when the direction of a shaft’s rotation needs to be changed. They are usually mounted on shafts that are 90 degrees apart, but can be designed to work at other angles as well.
What is a differential gear?
A differential gear is a mechanical device used to convert and transfer torque in a variety of manners. Typically, a differential will be used to distribute the torque from a single shaft to two or more shafts.
What is differential ring gear?
Differential gear. The ring gear rotates at a speed that is equal to the mean speed of the left and right wheels. If the wheels are jacked up with the transmission in neutral and one of the wheels is turned, the opposite wheel will turn in the opposite direction at the same speed.
