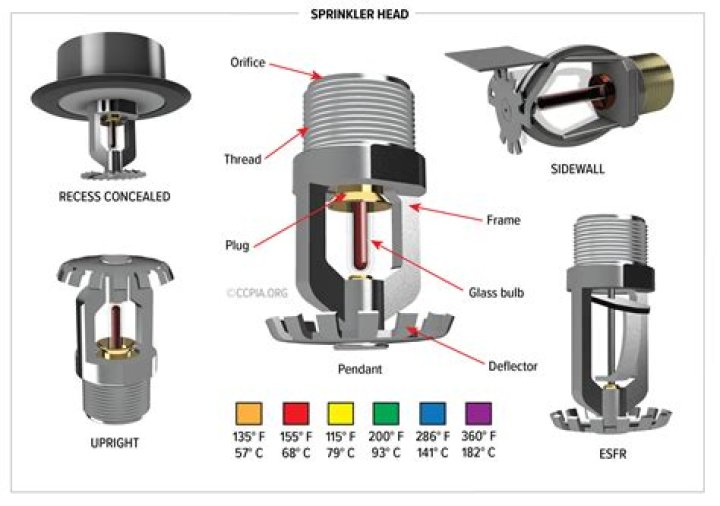

This publication states: “ The basic design of a fire sprinkler system takes place through specifications or preliminary plans. This function is app carried out by a licensed professional engineer or architect in compliance with state requirements.” and the Engineering Technician Designing Fire Protection Systems.

How far apart should sprinklers be?

The distance between the sprinkler heads should not be more than 1 foot greater than the width of the planter. In other words, if the planter is 8 feet wide you would install half circle heads on both sides of the planter, not more than 9 feet apart from each other.

How far apart should sprinklers be placed?

Types of Sprinkler Heads Because of the lower PSI the distance of the spray rarely exceeds 15ft. Meaning that spray heads should never be placed further than 15 ft. apart as this would create dry spots (i.e. dead grass) in your lawn. It is always important to install sprinklers with overlap for full coverage.

How do you adjust the arc on an orbit sprinkler?

Insert a flat-head screwdriver into the slot of the screw in the center of the nozzle and turn it clockwise to reduce the spray amount and distance. Turn it counterclockwise to increase them. Adjust the spray pattern on a gear-driven sprinkler using the screwdriver.

How many sprinkler heads can you put on a zone?

At different pressures, the sprinkler head and nozzle will consume different amounts of water. For example, at 35 pounds per square inch (PSI) the 5000 Series Rotor using the 3.0 nozzle will use 3.11 gallons per minute (GPM). If your home’s water capacity was 10 GPM, you could place 3 heads per zone.

How to design a sprinkler system?

Measure and prepare the area for the sprinkler system: For this job,you’ll need graph paper,a pencil and a tape measure.

  • Determine your water supply: Ask your local water authority to send you your property’s water pressure report.
  • Break up your property into hydrozones: You don’t want to over- or underwater your plants.
  • Pick your sprinkler heads: Make sure you stick to one sprinkler brand. You don’t want to mix brands because not all sprinkler systems are designed the same.
  • Design your sprinkler’s layout: On your design,draw out the spraying circles and sprinkler head locations on your map.
  • Measure and layout piping: Break up the smaller sprinkler heads into clusters of different circuits each controlled by one valve.
  • Finishing up your plan: In order to make sure you remember everything you need to build your lawn sprinkler,make a list including all sprinkler parts,such as piping,…

    • How much does a sprinkler system cost?

    The cost of an average sprinkler system would be between $3,000 and $6,000. An average system has 6-10 zones of sprinkler heads mixed with rotor heads, spray heads, and dripline.

    How do you install an irrigation system?

    Install your sprinkler heads. Place the heads, according to your plan, where you have chosen them to go. Bury the head deeply enough that the soil will support them and they will be slightly recess below the top of the turf at your preferred mowing height. Pack the soil firmly around the heads to hold them in position.

    What is an automatic sprinkler system?

    An automatic sprinkler system is a watering system that is constructed to operate a series of sprinklers on an automated basis. Systems of this type are often used for general lawn care, as part of caring for small and large gardens, and as a means of maintaining ground cover in parks…
