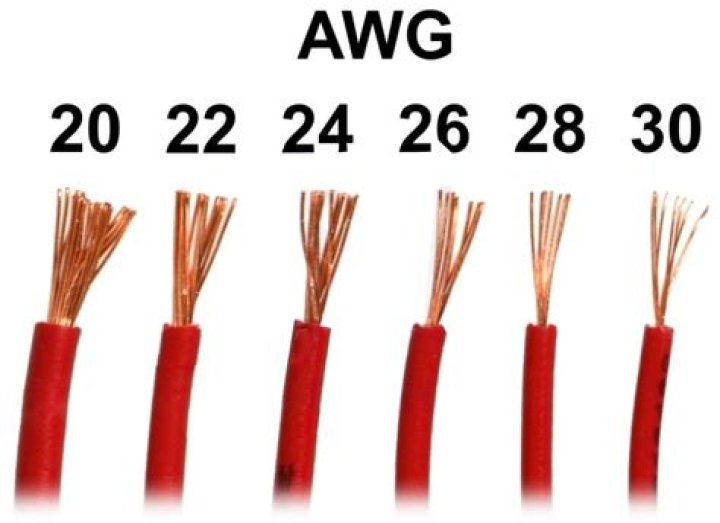

The higher the AWG size number the thinner the cable will be. So a 28AWG cable will be thinner than a 24AWG cable. Smaller gauge numbered cables are often solid cables which will be composed of thicker conductors inside them. The more copper used in these cables make them better for longer distance runs.
Does AWG matter for HDMI?
The larger the AWG number, the smaller the diameter of the HDMI cable will be.
What is 24 AWG HDMI cable?
HDMI Cable (24AWG) and Net Jacket -25ft (Gold Plated) (NF) High-Definition Multimedia Interface (HDMI) is the first industry-supported, UNCOMPRESSED audio/video interface. This cable connects to HDMI devices for DVD, satellite boxes, LCD, projectors, plasma and HDTVs.
What is 28AWG?
November 1, 2021. AWG, short for American Wire Gauge, is an index which shows the cross-sectional area of a round wire. In AWG, the larger the gauge, the slimmer the Ethernet cable. So, 28AWG cable is thinner than 24AWG cable, which does help in space-saving, airflow optimization and more.
What does 36awg mean?
0000 AWG is defined as 0.46 inches in diameter, and 36 AWG is defined as 0.005 inches in diameter. All other sizes are derived as logarithmic steps between these two defined sizes. There are 39 gauge steps between these sizes, and the ratio is 1-to-92 in diameter.
Which is better 23 AWG or 24 AWG?
23AWG is recommended for PowerOverEthernet. American Wire Gauge uses smaller numbers to indicate a longer diameter. The larger the diameter, the less resistance in the wire as there is more space for electrons to fit. So, in respect to PoE, 23AWG is thicker than 24AWG, so therefore better for electron flow.
What is AWG 23?
A 23AWG cable is 0.57mm wide, while a 24AWG cable is only 0.52mm wide. So the SMALLER the number, the LARGER the physical cable will be, with more copper inside it. To reduce resistance over the cable and achieve better electron flow, the diameter of the Ethernet cable’s conductor must be increased. .
What gauge is Cat 6 wire?
23-AWG
Cat6 cabling standards typically utilize 23-AWG conductor.
What is the difference between 24AWG and 28awg cables?
The higher the AWG size number the thinner the cable will be. So a 28AWG cable will be thinner than a 24AWG cable. When we talk about the AWG of the cable we are actually referring to the conductors (wires) inside the cables.
What is thicker 24 gauge or 28 gauge HDMI cable?
It is also important to note here that a lower number in fact pertains to a thicker gauge. For example 24 AWG is thicker than 28 AWG. In reference to HDMI Cables, there are a number of factors that are important in producing a quality HDMI cable.
Do all HDMI cables have 24 AWG conductors?
For example, a HDMI cable with an outer diameter of 7.0mm to 8.5mm is almost certainly not going to feature 24 AWG conductors. For cables that do meet the expected outer cable diameter dimensions, more advanced testing procedures would need to be undertaken to reach an accurate conclusion.
What is the difference between awg28 and awg24?
A thicker wire carries more current because it has less electrical resistance over a given length, which makes it better for longer distances. For this reason, where extended distance is critical, a company installing a network might prefer Ethernet wires with the lower-gauge, thicker wire of AWG24 rather than AWG26 or AWG28.
