Question: To use the conditions of equilibrium to solve for unknown forces to solve in a three dimensional force system. For particle equilibrium, the sum of all forces must be zero: ∑F=0 ∑ F = 0 .
What is static equilibrium of a particle?
Static equilibrium refers to any system where the sum of the forces, and torque, on every particle of the system happens to be zero. Simply, it is the equilibrium of a system whose parts are at rest. Students can learn more about static equilibrium here.
How many scalar equations of equilibrium are needed for 3d problems?
three scalar equations
THE EQUATIONS OF 3-D EQUILIBRIUM These equations are the three scalar equations of equilibrium. They are valid for any point in equilibrium and allow you to solve for up to three unknowns.
How many equilibrium equations are in 3D?
A (rigid) body is said to in equilibrium if the vector sum of ALL forces and all their moments taken about any (and all) points is zero. These equations give 6 independent equations in 3D space for each (rigid) body.
What is the condition for the equilibrium in three dimensional system of Axis?
Explanation: For the equilibrium in the three dimensional system of axis we have all the conditions true as, ∑Fx=0, ∑Fy=0 and ∑Fz=0. Also, we have the summation of the forces equal to zero.
What is equilibrium of a particle?
According to Newton’s first law, a particle is said to be in equilibrium if. there is no net force acting on it. This does not mean that no forces act on. the particle, but rather that the resultant of all the forces which do act on. the particle is zero.
How do you know if a particle is in equilibrium?
A particle which remains at rest or in uniform motion with respect to its frame of reference is said to be in equilibrium in that frame.
What is equilibrium of a particle when are two forces said to be in equilibrium?
A force is a vector quantity which means that it has both a magnitude (size) and a direction associated with it. If the size and direction of the forces acting on an object are exactly balanced, then there is no net force acting on the object and the object is said to be in equilibrium.
What are the 3D equations of 3D equilibrium?
THE EQUATIONS OF 3-D EQUILIBRIUM. When a particle is in equilibrium, the vector sum of all the forces acting on it must be zero (ΣF= 0 ) . This equation can be written in terms of its x, y and z components.
What is meant by the term ‘static equilibrium’?
Most often “static equilibrium” is used to describe an object at rest. To maintain equilibrium, it is necessary to satisfy Newton’s first law of motion, which requires the resultant force acting on a particle to be equal to zero.
What is the condition for the equilibrium of a particle?
3.1 Condition for the Equilibrium of a Particle A particle is in equilibrium provided it is at rest if originally at rest or has a constant velocity if originally in moti on. Most often “static equilibrium” is used to describe an object at rest.
What is the net force of a particle in equilibrium?

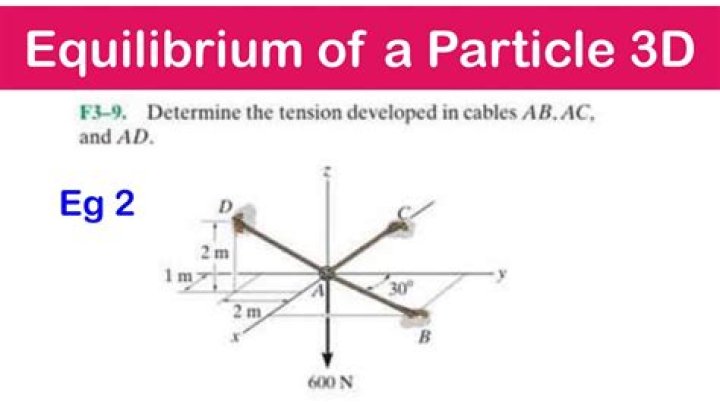

Since particle A is in equilibrium, the net force at A is zero. So F AB+ F AC+F AD= 0 or ΣF = 0 FBD at A A In general, for a particle in equilibrium, ΣF = 0 or ΣF
