| Hydrated Bead Size, µm | Hydrated Bed Volume Mass Dry Gel | |
|---|---|---|
| Bio-Gel P–4, extra fine | <45 | |
| Bio-Gel P–6, medium | 90–180 | 6.5 ml/g |
| Bio-Gel P–6, fine | 45–90 | |
| Bio-Gel P–6, extra fine | <45 |
What does Silica gel do in column chromatography?
Silica and alumina are both polar adsorbents so the more polar components in the mixture to be separated are retained more strongly on the stationary phase and are therefore eluted from the column last. Silica is recommended for most compounds, but as it is slightly acidic, it preferentially retains basic compounds.

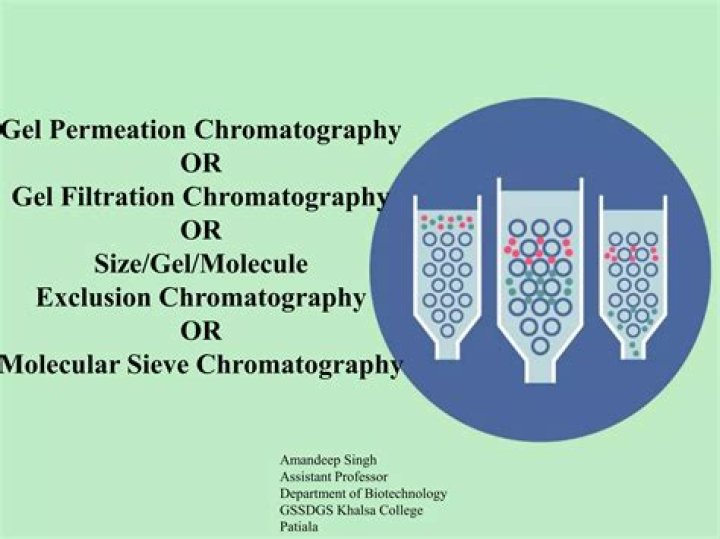

Is gel filtration chromatography the same as size exclusion?
Gel filtration chromatography, also known as size exclusion chromatography, is used to separate molecules of different sizes. In addition to separating different proteins of varying size, one may resolve oligomeric forms of a particular protein.
How do you choose the size of exclusion chromatography?
Molecules that are too large to fit any of the pores will be excluded and elute first. Smaller molecules that can diffuse into the pore structure will take longer to elute from the column, and elute later: A good rule of thumb is to choose a pore size that is 3x larger than the molecule you are trying to analyze.
What type of chromatography is size exclusion?
molecular sieve chromatography
Size-exclusion chromatography (SEC), also known as molecular sieve chromatography, is a chromatographic method in which molecules in solution are separated by their size, and in some cases molecular weight. It is usually applied to large molecules or macromolecular complexes such as proteins and industrial polymers.
What is the particle size of silica gel for column chromatography?
Gravity Chromatography: Gravity chromatography is a manual process of require continuously observed. Solvent allowed to move down the column by gravitational forced and the flow rate can be manually controlled. The practical size use of silica gel is 70-230 mesh and 63-210 microns.
What increases the resolution in size exclusion chromatography?
Increase in column length increases the resolution and increase in column diameter results in high bed volume and hence higher column capacity. The fractionation range and the exclusion limit can be controlled by varying pore size. The smaller the particle size of the gel, the higher the resolution achieved.
What is size size exclusion chromatography (SEC)?
Size exclusion chromatography (SEC), also called gel filtration, gel permeation, molecular sieve, and gel exclusion chromatography, is a separation technique used to separate molecules on the basis of size and shape (hydrodynamic radius).
What is silica gel used for in HPLC?
Silica gel is commonly used as a stationary phase in normal phase, adsorption HPLC. Normal phase HPLC works well with compounds that are insoluble in water, and organic normal phase solvents are more MS ‘friendly’ than some of the typical buffers used in reversed phase HPLC.
What is gel permeation chromatography/size exclusion chromatography?
1. Gel permeation chromatography/size exclusion chromatography is a type of high performance liquid chromatography (LC). 2. GPC/SEC can be performed in a wide range of solvents. From non-polar organics to aqueous applications.
What is the purpose of desalting in size exclusion chromatography?
Desalting and other types of buffer exchange are examples of group separations on size exclusion chromatography (SEC) resins. The purpose is to separate small molecules, such as salts, from large biomolecules such as proteins. Samples can be prepared for storage or for other chromatography techniques and assays.
