V7 is placed at the posterior axillary line, in the same horizontal plane as V6. V8 is placed at the tip of the left scapula, in the same horizontal plane. V9 is placed in the left paraspinal region, in the same horizontal plane.
What leads V7 V8 V9?

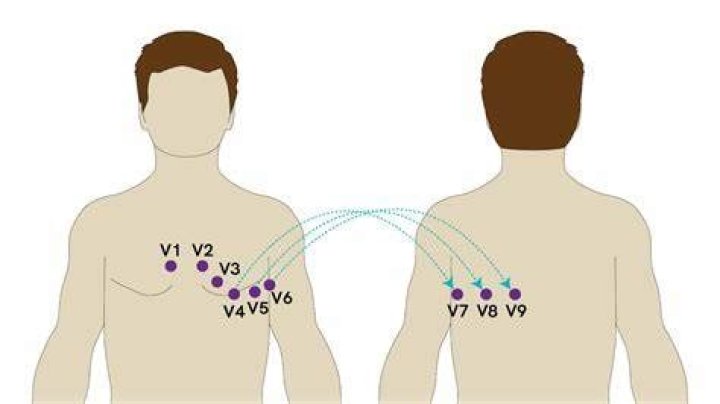

Leads V7-9 are placed on the posterior chest wall in the following positions (see diagram below): V7 – Left posterior axillary line, in the same horizontal plane as V6. V8 – Tip of the left scapula, in the same horizontal plane as V6. V9 – Left paraspinal region, in the same horizontal plane as V6.
Where should ECG nodes be placed?
V1 is placed to the right of the sternal border, and V2 is placed at the left of the sternal border. Next, V4 should be placed before V3. V4 should be placed in the fifth intercostal space in the midclavicular line (as if drawing a line downwards from the centre of the patient’s clavicle).
Where do you put ECG leads?
Simple steps for the correct placement of electrodes for a 12 lead ECG/EKG:
- Prepare the skin.
- Find and mark the placements for the electrodes:
- First, identify V1 and V2.
- Next, find and mark V3 – V6.
- Apply electrodes to the chest at V1 – V6.
- Connect wires from V1 to V6 to the recording device.
- Apply limb leads.
How important is ECG lead placement?
It is important an ECG is recorded accurately. ECG electrode placement is standardised, allowing for the recording of an accurate trace – but also ensuring comparability between records taken at different times.
What are the consequences of incorrect placement of ECG?
The analysis of ECG signals recorded from misplaced electrodes can lead to misinterpretation or even to significant diagnostic errors like incorrect recognition of anterior infarction, anteroseptal infarction, ventricular hypertrophy [9, 14], false diagnosis of ischemia, or Brugada syndrome [16, 24].
Where is the ECG placed on the body?
Electrodes (small, plastic patches that stick to the skin) are placed at certain spots on the chest, arms, and legs. The electrodes are connected to an ECG machine by lead wires. The electrical activity of the heart is then measured, interpreted, and printed out. No electricity is sent into the body.
Can ECG go wrong?
An abnormal EKG can mean many things. Sometimes an EKG abnormality is a normal variation of a heart’s rhythm, which does not affect your health. Other times, an abnormal EKG can signal a medical emergency, such as a myocardial infarction (heart attack) or a dangerous arrhythmia.
What is V7 and V8 in ECG?
V7: in the fifth intercostal space and the left posterior axillary line. V8: at the same level as electrode V6 and the midscapular line (tip of the scapula). V9: at the same level as electrodes V6 the left paravertebral line.
Where do you put the V9 on an electrocardiogram?
V9: at the same level as electrodes V6 the left paravertebral line. Once the electrocardiogram with posterior leads has been made, you must write the word Posteriors in the EKG header, and overwrite leads V7, V8, V9, on the leads that have been replaced by posterior leads.
What is a posterior lead in ECG?
Posterior Leads. Posterior Leads are helpful in suspected Posterior Myocardial Infarct. They are performed by placing V4, V5 and V6 electrodes in the same intercostal space, but continuing into the patient’s back. V7: In the fifth intercostal space and the left posterior axillary line.
How do you confirm posterior infarction on ECG?
Posterior infarction is confirmed by the presence of ST elevation and Q waves in the posterior leads (V7-9). Explanation of the ECG changes in V1-3. The anteroseptal leads are directed from the anterior precordium towards the internal surface of the posterior myocardium.
