An idler gear does not affect the gear ratio (velocity ratio) between the driver gear and the driven gear. It is mainly used to bridge the gap between the driver and driven wheels which are a distance apart and may also be used to get same direction of rotation of driven as that of driver. 2.1. Simple gear train.
What are idlers gears?
Definition of idler gear 1 : a gear placed between a driving and a driven gear to transfer motion without change of direction or gear ratio. 2 : a gear for support or guidance instead of power transmission.
What is a simple gear train with idler in?
Simple Gear Train with Idler? Two meshed gears will rotate in opposite directions. An Idler Gear allows the drive and driven gears to rotate in the same direction.
Do gear trains increase torque?
The main purpose of a gear train is to increase torque or speed. The arrangement of the driver and driven gears determine if the gear train will increase torque or speed. To increase output torque using a gear train, a power source should be directly connected to a smaller gear and used to drive a larger gear.
Where can a simple gear train be used?
Gear trains are used in almost all machines which are dealing with the mechanical power. Some of the places where gear trains are used are engines, lathes, clocks, gear box and Differential of automobiles etc.
What is synchronizer sleeve?
The sliding sleeve (6), also called gearshift sleeve, synchronizer sleeve or coupling sleeve, has a radial groove on the external side for the gears shift fork. The interior has splines that are in constant mesh with the external splines of the synchronizer hub.
What is the advantage of using helical gear over spur gear?
Helical gears are capable of holding more load compared with spur gears, because the load is distributed across more teeth. Helical gears are more durable than spur gears because the load gets distributed across more teeth.
Does simple gear train increase speed?
Rotary because the gear is circle shaped. What is the simplified gear ratio in the simple Gear Train B? Speed is increasing and the Torque is decreasing because the output gear is smaller than the input gear.
What is the purpose of having a gear train?
A gear train is a mechanical system formed by mounting gears on a frame so the teeth of the gears engage. Gear teeth are designed to ensure the pitch circles of engaging gears roll on each other without slipping, providing a smooth transmission of rotation from one gear to the next.
Why might compound gear trains be better than two gears alone?

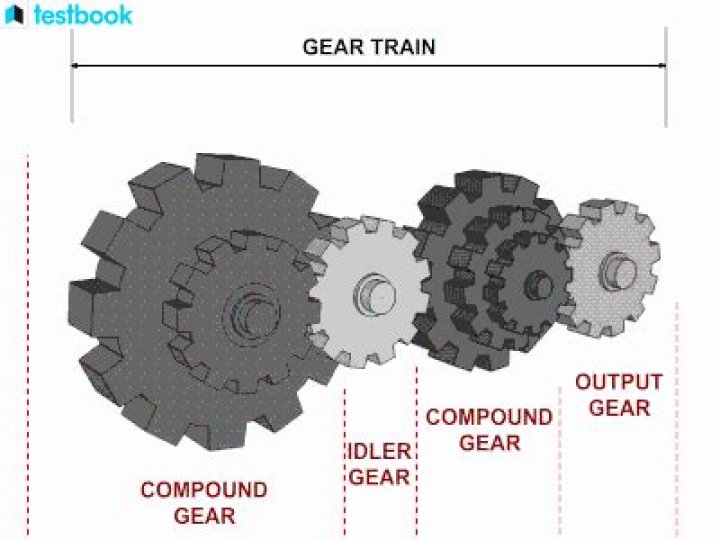

A compound gear train connects gears that may share axles or shafts. Two gears on the same shaft share the same torque and speed although they are different sizes. This allows more efficient manipulation of speed and torque throughout the system.
What objects use a gear train?
Systems that utilize gears and gear trains include bicycles, cars, electric screwdrivers, and many other common machines.
What does a simple gear train with idler do?
A simple gear train uses two gears, which may be of different sizes. If one of these gears is attached to a motor or a crank then it is called the driver gear. The gear that is turned by the driver gear is called the driven gear. When a simple gear train has three meshed gears, the intermediate gear between the driver gear and the driven gear is called an idler gear.
What is a simple gear train with idler used for?
An idler-wheel drive is a system used to transmit the rotation of the main shaft of a motor to another rotating device, for example the platter of a record-reproducing turntable or the crankshaft-to-camshaft gear train of an automobile.
What are some examples of simple gear trains?
Gear trains with two gears. The simplest example of a gear train has two gears. The “input gear” (also known as drive gear) transmits power to the “output gear” (also known as driven gear). The input gear will typically be connected to a power source, such as a motor or engine.
Why is idler gear used in gear trains?
– An idler is placed between driving and driven gear in a simple gear train. These idler gears are used to obtain large centre distance between driving and driven shafts and also to obtain desired direction of rotation of the driven shaft. – This idler gear is inserted between driving and driven gear and used for supporting purpose.
