When should a double-acting cylinder be used?

Double-acting cylinders are typically used in all applications where the thrusts and stroke lengths required are in excess of those available from single-acting cylinders. Small double-acting cylinders are also used for applications where positive end-of-stroke positions are required for both strokes.

How does a double-acting cylinder works?

Double-acting cylinders have a port at each end and move the piston forward and back by alternating the port that receives the high-pressure air, necessary when a load must be moved in both directions such as opening and closing a gate. Air pressure is applied alternately to the opposite ends of the piston.

What is a double-acting cylinder used for?

A double-acting cylinder is used where an external force is not available to retract the piston or it can be used where high force is required in both directions of travel.

How do you control a double-acting cylinder?

A 3-port valve is also used to control spring-return cylinders, with the spring retracting the cylinder when the valve is de-energized. A 5-port valve is often the best choice for controlling double-acting cylinders as it can pressurize and exhaust both sides of the cylinder for extension and retraction.

Can a double acting hydraulic cylinder be used as a single acting?

so yes you can use a double acting cylinder as a single acting.

What’s the difference between single acting and double acting cylinder?

What is the difference between double acting and single acting cylinders? Double-Acting – have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting – hydraulic fluid enters through a port at one end of the cylinder, which extends the rod by means of area difference.

What is double acting hydraulic cylinder?

A double acting cylinder uses two lines and gives you the full power of your hydraulic system in both directions. If you need to press and lift with the same arm or another device, a double acting cylinder is ideal. This versatile option gives you power in two directions for a multi-use piece of equipment.

What is difference between single acting and double acting cylinder?

What is an example of a double acting cylinder?

A double-acting cylinder is bidirectional and can seal dynamic pressure from both sides. An excavator is one example. When digging a trench, the excavator’s arm is first pushed in one direction by extending the rod. Then it is pulled down in another direction by retracting the rod.

How do I know if my cylinder is double acting?

A Double Acting cylinder uses hydraulic power to both extend and retract. A simple way to tell the cylinders apart is by looking at the number of ports. A Single Acting cylinder will have one port for the connection of a hydraulic cylinders Hydraulic Hose Fittings A Double Acting cylinder will have TWO ports.

Which valve is used in double acting cylinder circuit?

Four-way valves are used to operate double acting air cylinders, control bi-directional air motors and in air circuitry. Also two single acting cylinders can be operated with one 4-way valve. The flow paths for an unactuated valve are inlet to cylinder 2 and cylinder 1 to exhaust.

What is a double acting piston cylinder?

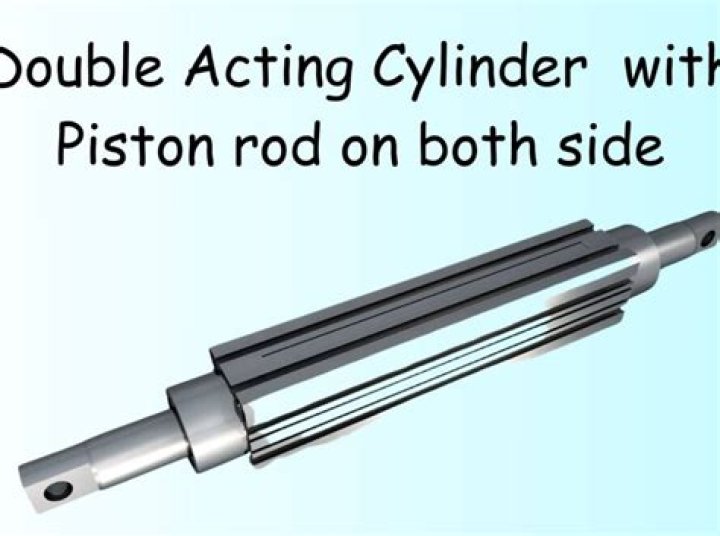

Double-Acting Cylinder with a Piston Rod on Both Sides A double-acting cylinder with a piston rod on both sides (Fig.1.5) is a cylinder with a rod extending from both ends. This cylinder can be used in an application where work can be done by both ends of the cylinder, thereby making the cylinder more productive.

How do you retract a double acting cylinder?

To retract the cylinder, the pump flow is sent to the rod-end port and the fluid from the blank-end port returns to the tank as in Fig.1.4 (b). A double-acting cylinder with a piston rod on both sides (Fig.1.5) is a cylinder with a rod extending from both ends.

What is a double rod cylinder used for?

This cylinder can be used in an application where work can be done by both ends of the cylinder, thereby making the cylinder more productive. Double-rod cylinders can withstand higher side loads because they have an extra bearing, one on each rod, to withstand the loading.

What is the forward stroke of a hydraulic cylinder?

When hydraulic oil will be supplied to its cap end port, hydraulic pressure force will be applied over the piston or plunger and hence piston will be extended and this stroke of cylinder will be termed as forward stroke.
