laminar
Whenever the Reynolds number is less than about 2,000, flow in a pipe is generally laminar, whereas, at values greater than 2,000, flow is usually turbulent.
What is a high Reynolds number?
The Reynolds number is a dimensionless number. High values of the parameter (on the order of 10 million) indicate that viscous forces are small and the flow is essentially inviscid. Low values of the parameter (on the order of 1 hundred) indicate that viscous forces must be considered.
What is the Reynolds number for laminar flow?

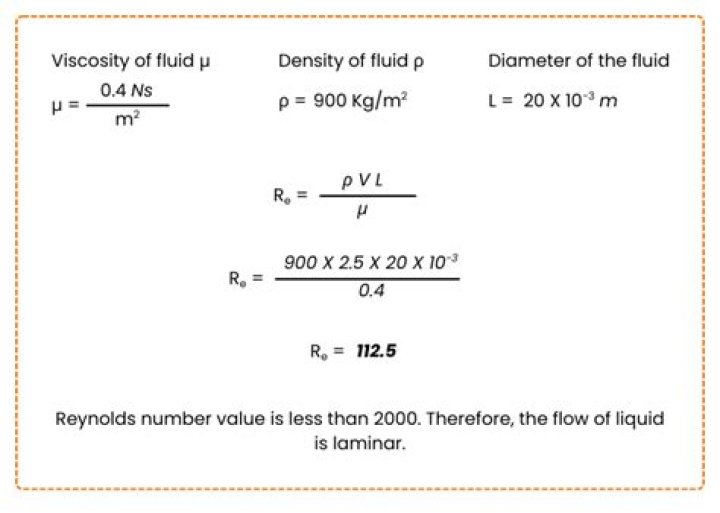

As indicated previously, if the Reynolds number is less than 2000, the flow is considered to be laminar. This is also known as viscous flow. This means that the various layers of liquid flow without turbulence in the form of laminations.
What happens to the flow of fluid if Reynolds number is 2200?
The Reynolds number is a dimensionless number (no units) characterizing the flow. In a straight vessel, when the Reynolds number exceeds the critical value of 2200 flow becomes turbulent. Below the critical Reynolds number flow is laminar. In general, flow in the arterial system is laminar.
What is the purpose of dye in Reynolds number experiment?
The flow velocity, therefore, can be determined to calculate Reynolds number. A dye reservoir is mounted on top of the head tank, from which a blue dye can be injected into the water to enable observation of flow conditions (Figure 7.1).
What would happen if two streamline intersect?
Why? If two streamline cross each other, the fluid particle at the point of intersection will have two different directions of flow. This will destroy the steady nature of the fluid flow.
Why do two streamlines never intersect each other?
Two streamlines cannot cross each other, because there will be two velocities at the point of intersection, which is not possible. On similar note, mass cannot cross a streamline.
What happens to the head loss when the flow rate is doubled?
Explanation: If the flow rate is doubled, the head loss increases by a factor of four. Since, the head loss is directly proportional to the square of the flow rate.
What is the transition range of Reynolds number between 1800 and 2100?
The transition range of the Reynolds number is between 1800 – 2100 beyond which the fluid flow will turn into turbulent flow. Re < 2100 is considered as Laminar flow. Turbulent flow, also known as turbulence, is a kind of fluid motion characterized by unpredictable variations in pressure and flow velocity.
ρ = density v = velocity d = diameter μ = viscosity The Reynolds number is used to determine whether a fluid is in laminar or turbulent flow. Based on the API 13D recommendations, it is assumed that a Reynolds number less than or equal to 2100 indicates laminar flow, and a Reynolds number greater than 2100 indicates turbulent flow.
What does the Reynolds number tell you?
The Reynolds number compares the inertial forces to the viscous forces that apply to a fluid. It is a dimensionless number used to determine if a fluid flow will be turbulent or laminar. A low Reynolds number means that the viscosity dominates and the flow will be laminar.
What is the Reynolds number for turbulent fluid flow?
The Reynolds number can be used as a parameter to distinguish between laminar and turbulent fluid flow. The change from laminar to turbulent flow is usually assumed to occur at a Reynolds number of 2,100 for flow in a circular pipe.
