radial leaded

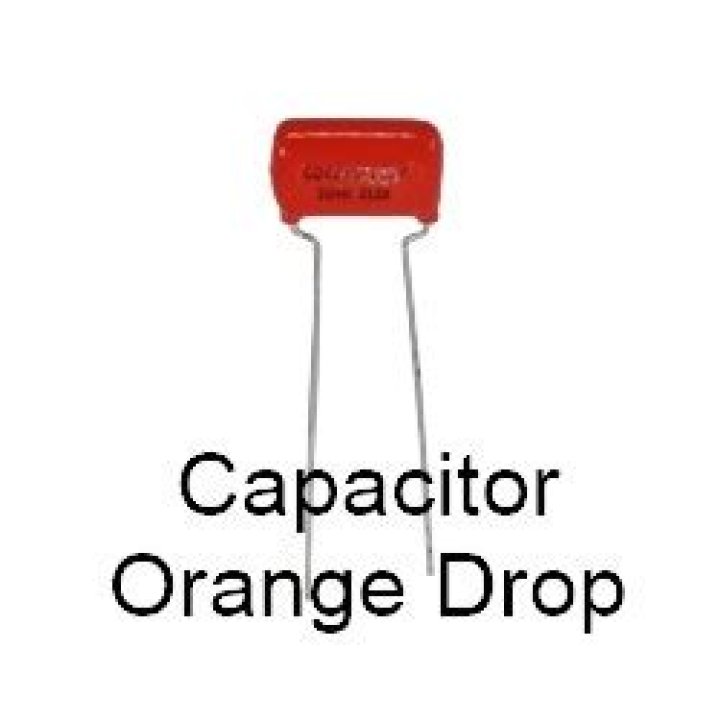

Offered in values from 0.22 nF to 10 µF and voltages from 100 VDC to 2000 VDC, Orange Drop capacitors are radial leaded types that mount to a printed circuit board. The term Orange Drop capacitor was first coined in the 1960s by Sprague Capacitor Company, so aptly named for their bright orange epoxy conformal coating.

Are Orange Drop caps good?

For Gibson’s guitars, Orange Drop capacitors provide the stability and precision-therefore, consistent tone-that professionals expect. Other precision capacitors would be suitable, but Orange Drop capacitors have a well-deserved reputation for quality that has proven itself for close to half a century.

What are Orange Drop capacitors made of?

Orange drop capacitors are made from aluminum foil and a polypropylene, polyester, polystyrene, and a polypropylene/polyester blend dielectric coated in a bright orange epoxy.

Where are Orange Drop capacitors made?

Orange Drops have been manufactured in Barre Vermont since 1946 and still are.

What is special about Orange Drop capacitors?

The Orange Drop capacitor line introduced in the 60s heralded the capacitors of the modern era-with stability, resistance to temperature variation, low moisture absorption, excellent characteristics in AC circuits, no microphonics, and other desirable attributes.

How do you determine the polarity of an orange drop capacitor?

Re: Mind-Blown: Orange Drops have Polarity? If the cap has a recognizable ‘outer foil’, by connecting this to the side which has lowest AC impedance to ground, you can screen the inner foil from picking up hum and interference to some extent.

Are tone caps polarized?

I’ve been asked a number of times whether the polarity makes any difference when connecting the common guitar tone cap, and I always answer No. Electrolytic caps are polarized, and can fail or explode if you connect them up backwards.

What are orange caps?

The largest of the organized citizen patrol groups is the Orange Hats, known for the orange baseball caps they wear as a sign of solidarity. Foreman often travels when he is requested to do so by concerned citizens interested in forming an Orange Hat patrol.

Do capacitors affect tone?

A capacitor affects tone more dramatically A capacitor allows much more of the high frequency sound to escape to ground. Connected to the signal and ground wires as shown here, a capacitor would have a big impact on tone (reducing treble), but that impact would be uncontrolled.

Do guitar capacitors have polarity?

Electrolytic caps are polarized, and can fail or explode if you connect them up backwards. But we don’t use electrolytics for guitar tone – the caps we typically use (polyester film, paper-in-oil, etc) have no significant polarity.

The two most generally used dielectrics in orange drop capacitors are polyester and polypropylene, but they are also available in a polyester dielectric and a polypropylene/polyester blend dielectric. Orange Drop Capacitors can be found in Electric Guitars, Guitar Amplifiers, Ham Radios, Vintage Radios, and Communication Equipment.

Is this a real 6PS cap?

Yes these are real 6PS caps and are marked CDE6PS. Some will be marked as CDE418P but this is the same thing as the Type PS. In other words, the 418P series will have different options (tolerances, capacitance, lead styles,etc) and the Type PS simply has specific options from the 418P series that makes it a Type PS.

Are the cde418p caps real 6PS caps?

Asked by Anonymous on December 27th, 2017. Yes these are real 6PS caps and are marked CDE6PS. Some will be marked as CDE418P but this is the same thing as the Type PS.

Is the burdock Cornell dubillier a dielectric capacitor?

These are, however, a high quality 600V capacitor. The old Burdock Cornell Dubillier 600 WV caps are probably the same thing. Not a dielectric cap? These are even made by CDE now so they should be a drop in replacement for the old Burdock CDEs.
