The cemented carbide drills are generally used in PCB drilling. The PCB drills have a point angle of 130° with a helix angle from 30° to 35°.
Can you drill a hole in a circuit board?
The PCB Drilling Processes Used for Hole Fabrication The standard method of drilling a thru-hole in a circuit board is to run the board with all of its layers laminated through the NC drilling machine. Later on, the holes will be plated inside and out as required to complete fabrication.
Can you drill holes in PCB?
Single-sided or double-sided PCB will be drilled directly after getting on the production line. Multi-layer board will be drilled after pressuring layers. By classification of the function, different drilling holes can be divided: parts hole, tool hole, through the hole, blind hole, Buried hole.
What is the material used in PCB drilling?

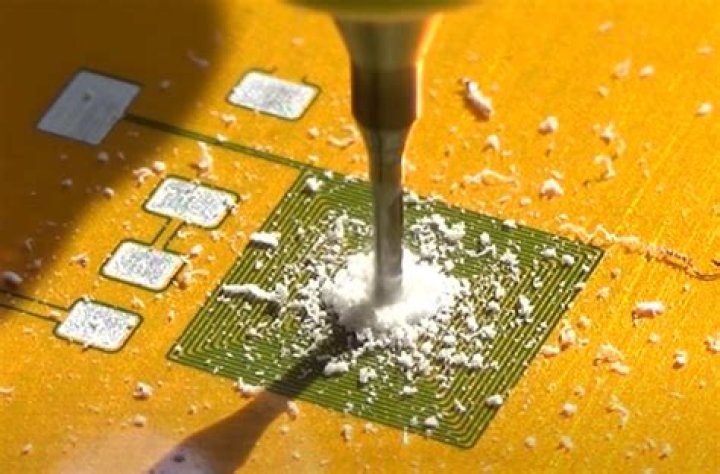

Holes through a PCB are typically drilled with drill bits made of solid coated tungsten carbide. Coated tungsten carbide is used because board materials are abrasive.
What is PCB drill?
PCB drilling, or printed circuit board drilling, is the process of creating holes, slots, and other cavities into an electronic circuit board before soldering/mounting components onto it. It is typically done by using a PCB drill bit (an automated machine) that is slightly smaller than the components placed on it.
How do you drill a circuit board?
Here are some tips to make the process of drilling PCBs foolproof:
- Drill Pilot Holes for Proper Drilling.
- Use a Straight PCB Drill Bit When Drilling at an Angle.
- Use a Correctly Sized Drill Bit.
- Use a Drill Bit of Appropriate Speed and Power.
- Use a Drill Press.
- Understand the Operation of a Drill Press.
Why PCB drilling is required?
In recent years, the production of printed circuit boards (PCBs) has not only increased in quantity but also been improved in quality. Thus, through hole drilling is one of the fundamental processes required in the manufacture to produce an electrical connection between the circuits on the board.
What is PCB drilling?
Through holes are drilled through the whole printed circuit board, which can be used for internal electrical interconnection or used as a positioning hole to assemble components. …
How is a printed circuit board made?
Printed circuit boards (PCBs) are usually a flat laminated composite made from non-conductive substrate materials with layers of copper circuitry buried internally or on the external surfaces. They can be as simple as one or two layers of copper, or in high density applications they can have fifty layers or more.
How does a printed circuit board work?
A printed circuit board, or PCB, is used to mechanically support and electrically connect electronic components using conductive pathways, tracks or signal traces etched from copper sheets laminated onto a non-conductive substrate.
