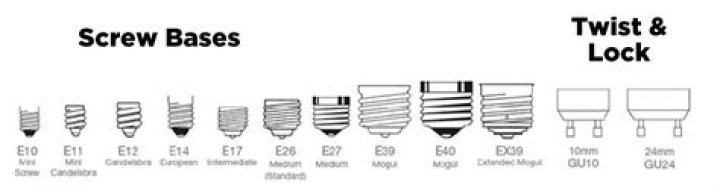

What size socket is a standard light bulb?

E26
E26 is the size of most light bulbs used in the U.S. It’s referred to as having a “medium” or “standard” base. E12 is the smaller “candelabra” base.

Can I change E12 to E26?

Simply screw the socket adapter into E12 type socket, and then screw in an E26 bulb. Enlarge the chandelier socket (E12) to medium socket (E26). Widely used. Works with incandescent, CFL (Energy Efficient) bulbs and LED bulbs.

Are all light bulb sockets the same size?

There are two common socket types, which are the classic bulb socket (Edison) and the pin socket. Always check for the old socket type, otherwise the new bulb will not fit! All replacements are 1:1 possible without any mechanical or electrical adjustments.

Will a E26 bulb fit in A19 socket?

All A19 lamps have an E26 base, but not the other way around The standards that govern the dimensions and design of A19 light bulbs also dictate that it must use an E26 screw base. In other words, all A19 light bulbs also have an E26 base.

Is E26 a standard light bulb base?

The most common type of light bulb here in the United States has what is referred to as a “Medium” base or “Standard” base. A Medium or Standard base light bulb is also referred to as an E26 base light bulb.

Do LED light bulbs work in regular sockets?

As long as the mounting base (socket) is the same size and type, you can use an LED bulb in an existing fixture. LED bulbs have much lower wattage than incandescent bulbs, so it’s important to know the light output (in lumens) for the bulb you’re replacing.

How do you wire a light bulb socket?

Connect the neutral wire — the one with the ridge in its insulation — to the silver socket terminal and the other wire to the brass socket terminal. Place the socket in the lamp, feeding the wire through the socket cap. Reinstall the socket’s insulating sleeve and shell, pushing on the shell until it snaps in place.

What type of socket is a standard light bulb?

A bulb socket is connected to some type of electric current, which can come from any number of sources, such as household current or battery power. Most people are familiar with the standard incandescent light bulb socket, and this is one of the most common types.

What is a medium base light socket?

Medium Base Socket. This medium base socket has a porcelain body that is gray glazed with a ceramic arc shield, allowing for more heat resistance. The 18 AWG , glass braid SEW-2 lugged leads are rated for 200 degrees Celsius and 600 volts. They are 9 inches long and stripped 1/2 inch for convenient installation.

What is a light socket?

Light sockets are the part of a lamp or light fixture that transfer electricity to a bulb. They are generally controlled by a string, chain, knob, or, in the case of most fixtures, a wall switch.
