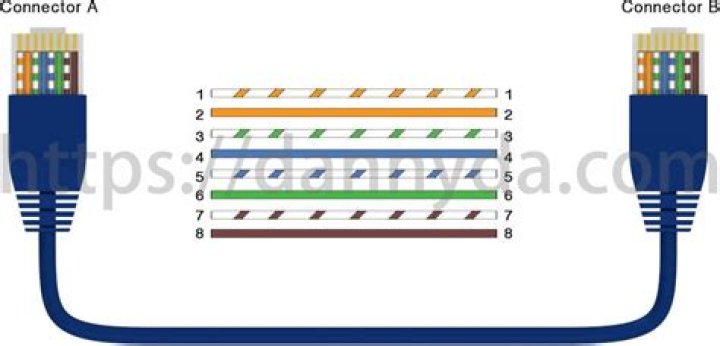

Moving from left to right, arrange the wires in a flat, side-by-side ribbon formation, placing them in the following order: white/orange, solid orange, white/green, solid blue, white/blue, solid green, white/brown, solid brown.
Is Ethernet cable twisted pair?
The twists reverse the polarity of the conductors at each and every twist, and this cancels out differences in their individual electromagnetic fields. The result is electromagnetic balance, and why Ethernet cable is called balanced twisted pair.
How do you check if the Ethernet cable is working?
Look at the lights. Most ethernet ports will have green lights next to them when the cable connects and there is good signal strength. If you plug in the cord and see yellow or red lights, there is a problem. If the light doesn’t light up at all, the port may be broken or the cord is bad.
Does Ethernet wire order matter?
For making a standard cat 5 cable, you’ll want to arrange the color-coded wires in the same order on both ends. It actually doesn’t matter which order you put the colors in, as long as it’s the same on both ends. If you want to follow a popular convention use the “568B” ordering.
What is Ethernet twisted pair?
Twisted pair Ethernet is an Ethernet computer network that uses twisted pairs of insulated copper wires for the physical layer of the network, which is combined with the data link layer. Typically, twisted pair has less bandwidth than other Ethernet standards such as optical fiber and coaxial cable.
Why are Ethernet pairs twisted?
Twisted pairs are made up of two insulated copper wires that are twisted together. The twisting is done to help cancel exterior electromagnetic interference. Crosstalk interference can come from other pairs within a cable. Due to its thinner diameter, a twisted wire is often found in telephone or network cables.
Why is my Ethernet not working but WiFi is?
If you’ve got working Wi-Fi but your wired ethernet connection is not working, the first thing to do is turn off the Wi-Fi. If Wi-Fi is disabled and you’re still not getting a network connection, make sure that ethernet is enabled in the same Network and Internet Settings section. Find the right network.
What are the best twisted pair testing tools?
There are some best twisted pair testing tools which are used by professionals such as CableIQ Qualification Tester which quickly identifies the cabling problem and also verify wire pairing and detect installation defects like “split pairs”. With this device you can also determine length of a cable or distance to a break or problem area.
What is a twisted pair cable?
Twisted pair (in other words, a network wire, an RJ-45 cable) can consist of either one pair of wires or several. Usually, ready-made patch cords are used – pieces of cable of standard length (on average from 0.3 m to 30 m).
Is it possible to test Ethernet twisted pair with multimeter?
Yes, it is possible to test Ethernet twisted pair with multimeter, but with the multimeter it is very difficult because you need to match your cable end or socket with the multimeter pin. Also it is difficult to maintain proper pairing of the wire.
What is the IEEE standard for Ethernet over twisted pair?
Ethernet is officially standardized by IEEE standard 802.3. It was originally developed by Xerox Corporation in cooperation with DEC and Intel in 1976. Nowdays ethernet over twisted pair (RJ-45 connection) runs at 10Mb, 100Mb, 1Gb or 10Gb per second.
