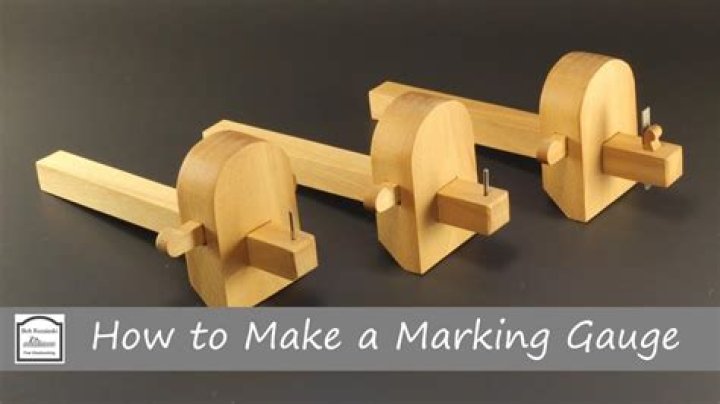

A marking gauge is used to mark a line parallel to a straight edge. The stem and stock are made from beech and the thumbscrew from clear yellow plastic. The better quality gauges have brass inserts at the front of the stock.
What are the safety rules for a marking gauge?
To attain an accurate result when marking-out, carefully handle and align your ruler, try square, sliding bevel or marking gauge, etc. Take the time to “measure twice – cut once”. Always try to keep your marking-out tools clean and protected – away from the regular hand tools and power tools on your work bench.
What is the difference between marking gauge and mortise gauge?
A marking gauge has a fence that can be moved and locked along a beam. There is a single pin to scribe one line. It is used primarily for scribing tenons and dovetail shoulder lines, and occasionally to mark out a rabbet. A mortise gauge has 2 pins to scribe both sides of a mortise simultaneously.
Do I need a marking gauge?
Pen Wheel Making Gauge. This wheel marking gauge is an essential marking and cutting tool that will assist you in laying out lines parallel to a flat wood surface with maximum precision and indicate where wood needs to be cut.
What are the four parts of a marking gauge?
The gauge consists of a beam, a headstock, and a scribing or marking implement, typically a pin, knife, pen or wheel. The headstock slides along the beam, and is locked in place by various means: a locking screw, cam lever, or a wedge. The marking implement is fixed to one end of the beam.
What type of marking tool is used for wooden fabric?
Tailor’s Chalk – Tailor’s chalk usually comes in the shape of a flat triangle or rectangle. Tailor’s chalk will rub right off the fabric when you’re finished with the markings, so it generally carries less risk than using a pencil or marker.
What does a marking gauge look like?
A marking gauge is the most common type of gauge used for marking. It uses a small pin, sometimes referred to as a spur, to mark the wood when the tool is dragged across it. In its early form, the marking gauge was simply two pieces of wood attached together with a pin through one end for marking.
Do you need a marking gauge?
Pencils have always been vital to woodworkers, but so are marking gauges for precision results. Marking gauges are indispensable for joinery work such as cutting dovetails and mortise-and-tenon joints.
What is the maintenance of marking gauge?
Marking out gauges should be kept indoors and out of moisture to stop the wood rotting or metal corroding. If the surface does get wet, wipe it dry as soon as possible.
What does marking gauge stand for?
Here are all the possible meanings and translations of the word MARKING GAUGE. A marking gauge, also known as a scratch gauge, is used in woodworking and metalworking to mark out lines for cutting or other operations. The purpose of the gauge is to scribe a line parallel to a reference edge or surface.
What are the different types of marking out gauge?
Types of Marking Gauge and Their Uses Standard Marking Gauges. The most basic form of gauge is the simple marking gauge. Panel Gauges. Related to the marking gauges are the panel gauges. Mortise Gauges. Mortise gauges are a specialization of the standard marking gauge which have two marking points. Butt Gauges. Slitting Gauges.
What are the parts on a marking gauge?
A marking gauge is a very simple tool, consisting of three essential parts: an arm, a fence, and a cutter. Most gauges also have a locking mechanism, which prevents the fence from moving in use. Many early marking gauges had no locking mechanism, and the arm was instead merely friction-fit into the fence.
What are marking out gauges made from?
Lower-end marking gauges are usually made of beech , while the premium tools were made rosewood, boxwood , or other exotics (the British were quite fond of ebony and mahogany). The heads on these gauges come in in two basic varieties: elliptical (easier to hold), or rectangular (won’t roll off the bench).
