Whitworth thread gauges (BSW/ BSF) supplier The BSW is the Coarse thread series of BS 84-Parallel Screw Threads of Whitworth Form. We have as below BSW thread gauges . The BSF is the Fine thread series of BS 84-Parallel Screw Threads of Whitworth Form.
How many TPI is 5/16 BSF?
BSF fasteners
| BSF….. | Nominal | TPI Threads per inch |
|---|---|---|
| 7/32″ | 0.219 | 28 |
| 1/4″ | 0.250 | 26 |
| 9/32″ | 0.281 | 26 |
| 5/16″ | 0.313 | 22 |
Is BSF the same as BSW?
Both of these thread types are use for imperial thread. BSF and BSW are Britisch measurement systems, while UNF and UNC are American measurement systems. BSF and UNF are the fine thread systems, while BSW and UNC are the coarse thread systems. The BSF/BSW have a wave like thread profile.
Is UNF and NF thread the same?
NC and UNC mean coarse thread. NF and UNF mean fine thread. Pitch Diameter is the basic dimension of a screw, threaded hole, or a tap the diameter of an imaginary cylinder, the surface of which passes through the thread where width of thread and space between threads are identical.
How do you measure a BSF bolt?
The length of a Hexagon bolt is determined by measuring from underneath the head to the end of the bolt. If the bolt has a countersunk head, the full length of the bolt including head is measured.

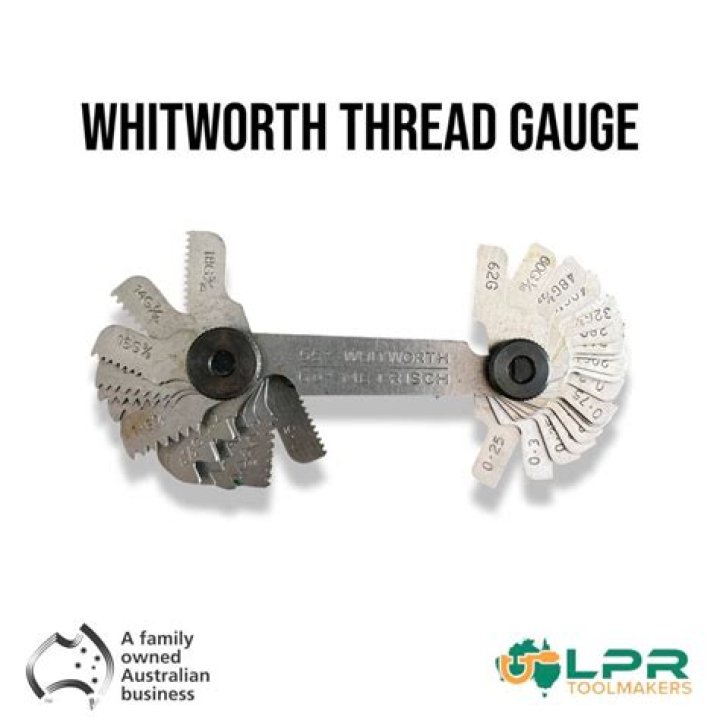

What is bsbsw thread gauge?
BSW and BSF Thread Gauges Gauges for testing parallel threads having a full form Whitworth profile are manufactured to BS 84: 2007 and BS 919: Part 2: 2007. BS 84 specifies basic information for the Whitworth form, and tabulates diameters for threads designated BSW and BSF. BSW is a coarse thread series from 1/8″ to 6″ diameter.
What is the BSF thread size?
BSF is a fine thread series from 3/16″ to 3″ diameter. Provision is made for three classes of fit for external threads. Close, Medium and Free and two classes for internal threads; Medium and Normal.
What is BS 84 thread size?
BS 84 specifies basic information for the Whitworth form, and tabulates diameters for threads designated BSW and BSF. BSW is a coarse thread series from 1/8″ to 6″ diameter. BSF is a fine thread series from 3/16″ to 3″ diameter.
What are the gauge limits in bs919?
BS919: Pt 2: 2007 specifies the limits for gauges with threads having a full form profile. The gauge limits are dependant upon the diameter/pitch. Generally, the larger the diameter, the larger the limit within defined bands.
