If on bringing the anvil and spindle of micrometer screw gauge together, the zero mark of the circular scale is below the main scale line, then the zero error is said to be positive. To find positive zero error, note the division on the circular scale (C.S.R.) coinciding with the line of the main scale line.
Is there any zero error in screw gauge?
Zero Error of a Screw Gauge: When the plane surface of the screw and the opposite plane stud on the frame are brought into contact, if the zero of the head scale coincides with the pitch scale axis, there is no zero error.
What is zero correction in screw gauge?
When the circular scale of the screw gauge is rotated to maximum capacity and if the reference line on the main scale coincides with the zero of the circular scale there is no error on the screw gauge. Zero correction can be done by adding the same number of the zero error but with the opposite sign.
How do I get rid of zero error?
You can also suppress this error by nesting your division operation inside the IFERROR function. Again, using A2/A3, you can use =IFERROR(A2/A3,0). This tells Excel if your formula evaluates to an error, then return 0, otherwise return the result of the formula.
How do you find the zero error?
- 0.3 mm. B.
- 0.7 mm. Medium. Solution. Verified by Toppr. A.
- 0.3 mm. Since, the zero of vernier scale is ahead of zero of main scale. So the error is positive zero error. Least count of the vernier calliper L. C.= 1 mm. Since the 3rd division matches with the main scale division. Zero error =n×L. C.= 3×0. 1=0. 3 mm.
What is a zero error?
zero error Any indication that a measuring system gives a false reading when the true value of a measured quantity is zero, eg the needle on an ammeter failing to return to zero when no current flows. A zero error may result in a systematic uncertainty.
What do you do with a negative zero error in a screw gauge?
If the zero of the circular scale above the reference line (index) line, the error is negative. So, zero correction will be positive. when the zero error is positive zero error, it will be subtracted from the measured value and When when the zero error is negative zero error, it will be added to the measured reading.
What are the causes of zero error?
Zero errors are caused by faulty equipment that doesn’t reset to zero properly. Check before you start measuring that the measuring instruments read zero for zero input. A zero error would affect every reading you take.
What is the error in using a micrometer screw gauge?
In this case, it is 0.22 mm. When using Micrometer Screw Gauge, we have to first check for zero error. This is to check whether zero mark on thimble scale coincides with datum line on the main scale and reading on main scale is 0 when we are not measuring anything (anvil is in contact with spindle).
How do you find the zero error on a micrometer?
To find negative zero error, note the division on the circular scale (C.S.R.) coinciding with the line of the main scale line. Then the negative error is equal to the product of the number of divisions on circular scale matching with the main scale line and the least count of the micrometer screw gauge.

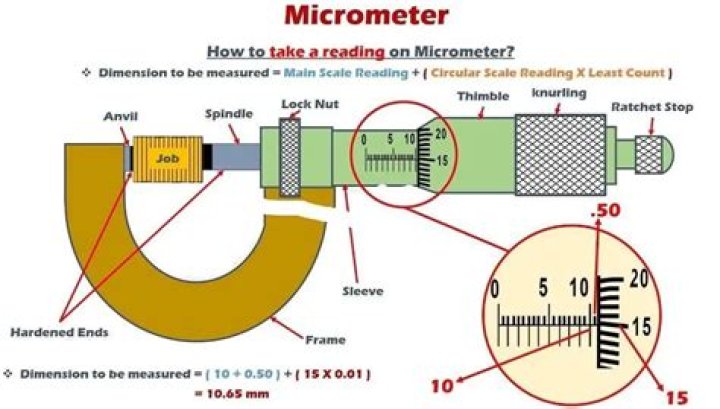

How to use micrometer screw gauge to measure thimble scale?
When using Micrometer Screw Gauge, we have to first check for zero error. This is to check whether zero mark on thimble scale coincides with datum line on the main scale and reading on main scale is 0 when we are not measuring anything (anvil is in contact with spindle). For reading on zero error, we have to
What is the difference between correct reading and zero error?
Correct reading = Obtained reading– Zero error Correct reading = Obtained reading – Zero error where zero error zero error can be either negative (the “0” marking on the thimble is above the datum line) or positive ( the “0” marking on the thimble is below the datum line ) Now, we shall try with zero error.
