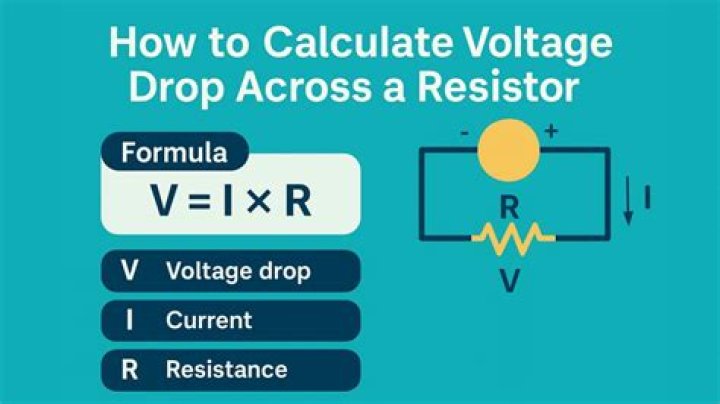

According to Ohm’s law, if 10 milliamperes passes through a 100 ohm resistor, then the voltage dropped across that resistor will be : E=IR=10mA×100Ω=1 volt.
What does 100R resistor mean?
100R means 100 ohms.
What is the color code for a 100K ohm resistor?
100K Ohm Resistor Color Code: Brown, Black, Yellow, Golden.
What is the current in a 100 ohm resistor?
current through 100 = 1/2(1) = 0.5A.
How do you calculate the resistance needed to drop voltage?
In this case, V = IR (voltage drop = current x resistance). You know the voltage drop is 3V, but to calculate the resistance (R) required for the drop, you will need to know I (the current). Example: Let’s say that you know the current is 1 Amp, then V = IR, so 3V = 1A x R. The resistance must be 3 Ohms.
Can we use 4 band resistor instead of 5 band?
There is no difference. You tend to see five bands on metal film resistors as opposed to the older carbon resistor types, but an ohmic resistance is an ohmic resistance.
What is R and K in resistor?
Resistor shorthand The letter R means multiply by 1. For example: 560R means 560. 2K7 means 2.7k = 2700. 39K means 39k.
What is the value of 100 Ω resistor?
The tolerance will be –> 5% of 100 –>5 Ω Theoretically, the value of 100 Ω resistor is between 95 Ω to 105 Ω Description: From the chart below we got the color code of resistor with respect to the decimal value of the respective band taken from left to right.
What is the color code for the four bands 100 ohm resistor?
The color code for the four bands 100 Ohm resistor is brown, black, brown, gold. Description: From the chart below we got the color code of resistor with respect to the decimal value of the respective band taken from left to right.
What is the color code for a 5% tolerance resistor?
In this case, it is Gold which indicates a 5% tolerance value. For Silver, it is 10%, and 2% tolerance is indicated by Brown. If the 4th band is absent it should be considered as 20% tolerance. The 100R 5-band resistor color code is b rown, black, black, black, gold and it is found as:
What is the AC ohm’s law formula?
AC Ohm’s law formula. The voltage V in volts (V) is eqaul to the current I in amps (A) times the impedance Z in ohms (Ω): V(V) = I(A) × Z(Ω) = (|I|×|Z|) ∠ (θI + θZ)
