Unified Diagnostic Services (UDS) is a diagnostic communication protocol used in electronic control units (ECUs) within automotive electronics, which is specified in the ISO 14229-1.
What is UDS protocol?
Unified Diagnostic Service (UDS) according to the ISO 14229 standard is a protocol used by diagnostic systems to communicate with ECUs in vehicles. The protocol is used to diagnose errors and reprogram ECUs. For example, it is possible to read and delete the fault memory of an ECU or to flash a new firmware on the ECU.
What is UDS interface?
The Unified Diagnostic Services (UDS) standard also known as ISO-14229 is an application protocol interface used in road vehicles for diagnostics, debugging and configuration of ECUs.
What is routine Identifier in UDS?
This function unit has only one service Id 0x31 “Remote Activation Of Routine“. This service is used by the client to perform various project specific functions through OEM-specific routine Identifier.
Can UDS frame format?
UDS is a CAN frame with specific format in the DATA bytes. You generally need to know CAN ID for the node you require Diagnostic information from. Standards related to UDS: ISO 15765, ISO 14229.
What is routine identifier in UDS?
What is difference between OBD and UDS?
Both the OBD and UDS protocols are focused on diagnostics, but comparing them is not really correct. UDS is designated for the offline diagnostics of vehicle malfunctions at a service station, while OBD is an onboard self-diagnosis service for ECUs that analyzes the engine’s harmful emissions.
What is negative response code?
Negative response codes. 0x80 – 0xFF: negative response codes for specific conditions that are not correct at the point in time the request is received by the server.
Why is 7F negative?

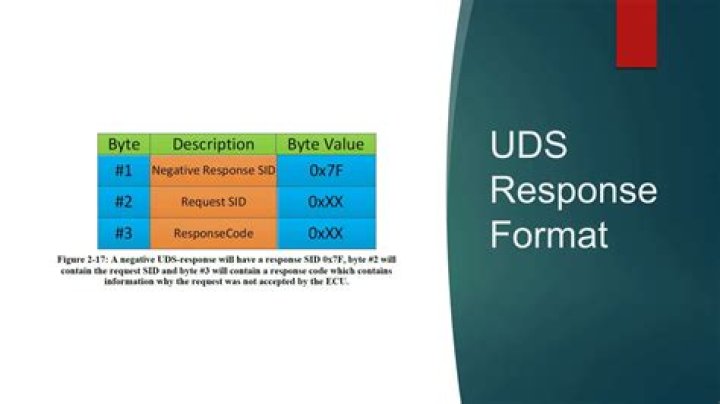

3 Answers. In UDS the first byte of a positive response is always SID + 40 hex (SID = Service Identifier, the first byte of the request) and the first byte of a negative response is always 7F hex : simply because it is defined like this in the international standards ISO14229-1 (former ISO 15765-3).
