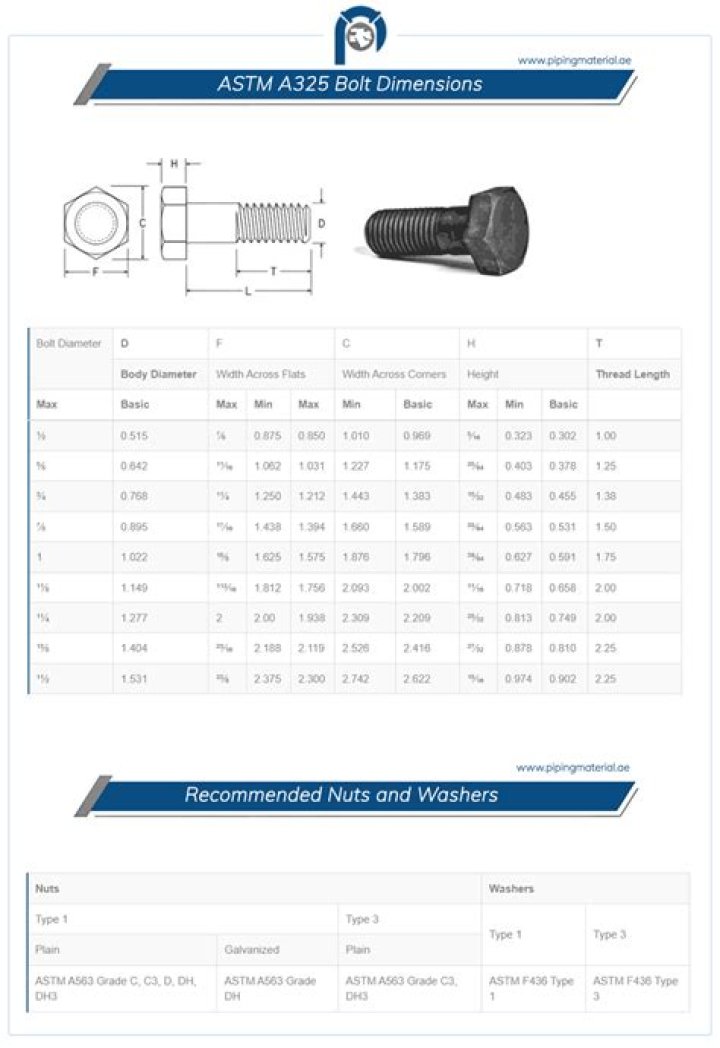

A325
| Bolt Size | TPI | Tightening Torque Range |
|---|---|---|
| Min – Max | ||
| 1⁄2 | 13 | 50 – 58 |
| 5⁄8 | 11 | 99 – 120 |
| 3⁄4 | 10 | 175 – 213 |
What is the minimum tension for a 7 8 A325 bolt?
ASTM A325
| Bolt Size | TPI | Tension |
|---|---|---|
| Min | ||
| 7⁄8 | 9 | 39,000 |
| 1 | 8 | 51,000 |
| 11⁄8 | 7 | 64,000 |
How many times can a 325 bolts be fully tightened taken out and re used as a production bolt?
A 490 bolts and galvanized A 325 bolts shall not be reused. Other A 325 bolts may be reused one time, if approved by the Engineer. Retightening previously tightened bolts which may have been loosened by the tightening of adjacent bolts will not be considered as reuse. (2) Tightening Methods.
What is turn of the nut method?
The Turn-of-Nut method is widely used to obtain the minimum preload tension force specified for bolts in slip-critical connections. This method consists in first snug-tightening the bolts.
What is the torque for 7/16 Grade 8 bolt?
US Recommended Bolt Torque
| Size | Recommended Torque | |
|---|---|---|
| Grade 2 | 18-8 S/S | |
| 7/16″ | 24 | 33 |
| 1/2″ | 37 | 45 |
| 9/16″ | 53 | 63 |
Are A325 bolts high strength?
A325 Structural Bolts ASTM A325 covers high strength structural bolts used in structural steel connections. A325s have a heavy hex head, a full body diameter, and are normally short in overall length since they are connecting steel to steel.
What is the difference between an A325 and A490 bolt?
An important distinction between A325 and A490 is that it A325 Type 1 bolts can be galvanized. A325 bolts have a minimum tensile strength of 120,000 PSI for one inch or less diameters and 105,000 PSI for over one inch.
What is torque on differential cover bolts?
According to the Haynes manual I have, the torque spec for the differential cover bolts are 30 Ft/Lbs.
What is the torque for cylinder head bolts?
In engines manufactured before 1996, the cylinder head bolts requires 65 foot-pounds of torque. In engines made during or after 1996, the cylinder head bolts 22 foot-pounds of torque. In either case, the bolts must be torqued twice.
What is the head bolt torque?
Head Bolt Torque. Head bolt torque refers to the amount of rotational force that must be applied to the cylinder head bolts for a safe and secure connection either to the engine block or another cylinder head depending upon the engine. After the desired torque is reached, some bolts then require further rotation of a few degrees.
