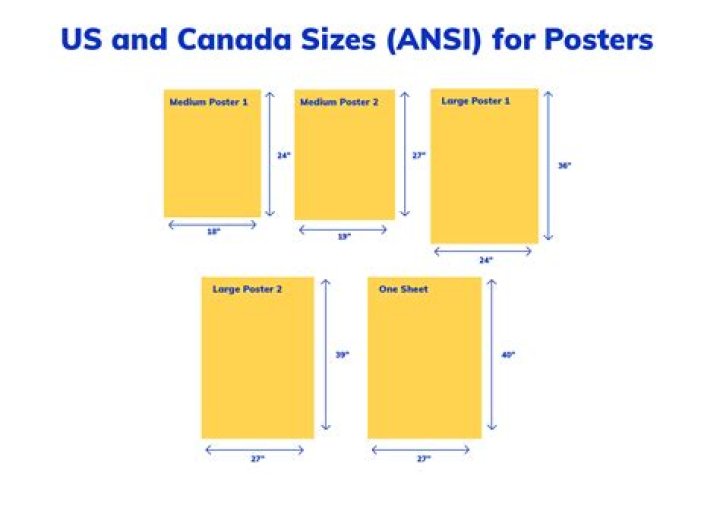

US architectural drawing sizes and formats.
| Standard US Architectural Drawing Sizes | Size | |
|---|---|---|
| (mm) | (inches) | |
| ARCH B | 304.8 x 457.2 | 12 x 18 |
| ARCH C | 457.2 x 609.6 | 18 x 24 |
| ARCH D | 609.6 x 914.4 | 24 x 36 |
What is the standard scale measurement used in floor plan drawings?
Floor plans are commonly produced at 1/ 50th (1 to 50) or 1/100th (1 to 100) of their actual size. Site plans are often drawn at 1/200th (1 to 200) or even 1/500th (1 to 500) of actual size. A scale of 1 to 100 is indicated on a drawing using the code 1:100.
What is the most common architectural scale?
Architect Scale. The architect’s scale is used by architects and builders for obtaining measurements from scaled drawings of buildings and other structures. It is typically three-sided with 11 scales or flat with 4 scales. It is available in lengths ranging from 4″ to 36″ although 12″ models are most common.
What are the dimensions of an architectural C size drawing sheet?
North American ANSI Series Paper Sizes
| SIZE | INCHES | MILLIMETERS |
|---|---|---|
| ANSI B | 11 × 17 | 279 × 432 |
| ANSI C | 17 × 22 | 432 × 559 |
| ANSI D | 22 × 34 | 559 × 864 |
| ANSI E | 34 × 44 | 864 × 1118 |
What is the standard architectural scale?
Architect scales, such as 1/4˝ = 1´-0˝ (1/48 size) or 1/8˝ = 1´-0˝ (1/96 size), are used for structures and buildings. They are used to measure interior and exterior dimensions such as rooms, walls, doors, windows, and fire protection system details.
What scale has most floor plans?
For example, most floor plans and elevations are in 1/8- or 1/4-inch scale, depending on the size of the building and sheet. For residential structures, the 1/4-inch scale is usually used, roughly equivalent to 1:50 in metric scale (Figure 4.5).
What size is ANSI C?
432 × 559 mm
An ANSI C piece of paper measures 432 × 559 mm or 17 × 22 inches. ANSI C is part of the American National Standards Institute series, with an aspect ratio of 1:1.2941.
What size is Architectural paper?
North American ARCH Series Paper Size
| SIZE | INCHES | MILLIMETERS |
|---|---|---|
| ARCH A | 9 x 12 | 229 × 305 |
| ARCH B | 12 x 18 | 305 × 457 |
| ARCH C | 18 x 24 | 457 × 610 |
| ARCH D | 24 x 36 | 610 × 914 |
What size is C10 paper?
28 mm x 40 mm
Envelope Size Guide DL C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 C10
| Envelope Size | mm (w x h) | in (w x h) |
|---|---|---|
| C7 | 81 mm x 114 mm | 3.2 inches x 4.5 inches |
| C8 | 57 mm x 81 mm | 2.2 inches x 3.2 inches |
| C9 | 40 mm x 57 mm | 1.6 inches x 2.2 inches |
| C10 | 28 mm x 40 mm | 1.1 inches x 1.6 inches |
What size paper is used for architectural drawings?
24” x 36”
What is the standard blueprint paper size? Blueprints and house plans will come in several standard sizes. Two of the most common architectural drawing sizes are 18” x 24” and 24” x 36”, but the Business Box also prints construction plans of 36” x “48” sizes.
