Applications of Separately Excited DC Generators Because of their ability of giving wide range of voltage output, they are generally used for testing purpose in the laboratories. Separately excited generators operate in a stable condition with any variation in field excitation.
What are the application for a separately excited generator?
Applications of Separately Excited DC Generators These are able to produce a wide range of voltage output, they are primarily used in laboratory and commercial testing. These are used in speed regulation tests. These generators operate in a stable condition with any change in field excitation.
What are the characteristics of a separately excited DC generator?
The external characteristic of a separately excited generator is the curve between the terminal voltage (V) and the load current IL (which is the same as armature current in this case). (a) The armature reaction weakens the main flux so that actual e.m.f. generated E on load is less than that generated (E0) on no load.
How is the field of a separately excited DC generator connected?
In a separately excited (S.E.) machine, the field winding is connected to a separate voltage source while, in a self excited generator field winding is connected across the armature terminals (provides its exciting current) . Hence, the field winding has a large number of turns with a thin conductor.
What are the advantages and disadvantages of a separately excited DC generator over a self excited generator?
Separately excited DC generators have many advantages over self-excited DC generators. It can operate in stable condition with any field excitation and gives wide range of output voltage. The main disadvantage of these kinds of generators is that it is very expensive of providing a separate excitation source.
What are the disadvantage of PMDC and separately excited DC motor?
The disadvantages of a PMDC motor are: The armature reaction of DC motor cannot be compensated hence the magnetic strength of the field may get weak due to the demagnetizing effect of the armature reaction.
How can you control the speed of a separately excited dc motor?
The speed of separately excited dc motor can be control by changing the armature voltage and changing field flux. Due to this the speed can be controlled for below rated speed and speed above the rated speed, respectively.
Which are applications of DC shunt generators?
Used for supplying field excitation current in DC locomotives for regenerative breaking. Used as boosters to compensate the voltage drop in the feeder in various types of distribution systems such as railway service. Used in series arc lightning, booster, etc.
What is the main reason for the voltage drop in a separately excited DC generator as the load is increased?
(3.3) (i). As the load current increases, the terminal voltage falls due to two reasons: (a) The armature reaction weakens the main flux so that actual e.m.f. generated E on load is less than that generated (E0) on no load. (b) There is voltage drop across armature resistance (= ILRa = IaRa).
What are the advantages and disadvantages of separately excited generator over a self-excited generator?
What happens in a separately excited DC generator when the load is increased?
When the load supplied by the generator is increased, IL (and therefore IA) increases. As the armature current increases, the lARA drop increases, so the terminal voltage of the generator falls.
How does a separately excited dc motor work?
Separately excited dc motor has field coils similar to that of shunt wound dc motor. The name suggests the construction of this type of motor. Here, the field coil is energized from a separate DC voltage source and the armature coil is also energized from another source.
Which one is a separately excited generator?

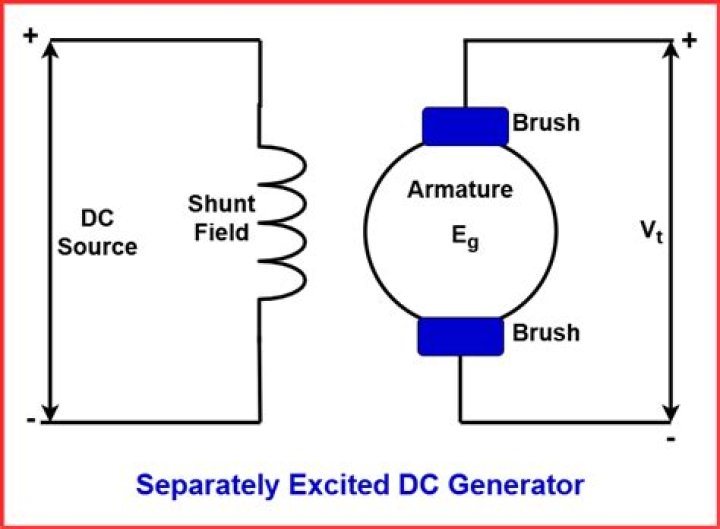

A DC generator whose field winding or coil is energised by a separate or external DC source is called a separately excited DC Generator. The flux produced by the poles depends upon the field current with the unsaturated region of magnetic material of the poles. i.e. flux is directly proportional to the field current.
What is a DC generator used for?
Applications of DC Generators They are used for general lighting. They are used to charge battery because they can be made to give constant output voltage. They are used for giving the excitation to the alternators. They are also used for small power supply.
What is a self excited DC generator?
Self-excited DC Generator is a device, in which the current to the field winding is supplied by the generator itself. In self-excited DC generator, the field coils mat be connected in parallel with the armature in the series, or it may be connected partly in series and partly in parallel with the armature windings.
What is a separately excited DC shunt motor?
Separately excited dc motor has field coils similar to that of shunt wound dc motor. The name suggests the construction of this type of motor. Usually, in other DC motors, the field coil and the armature coil both are energized from a single source. The field of them does not need any separate excitation.
