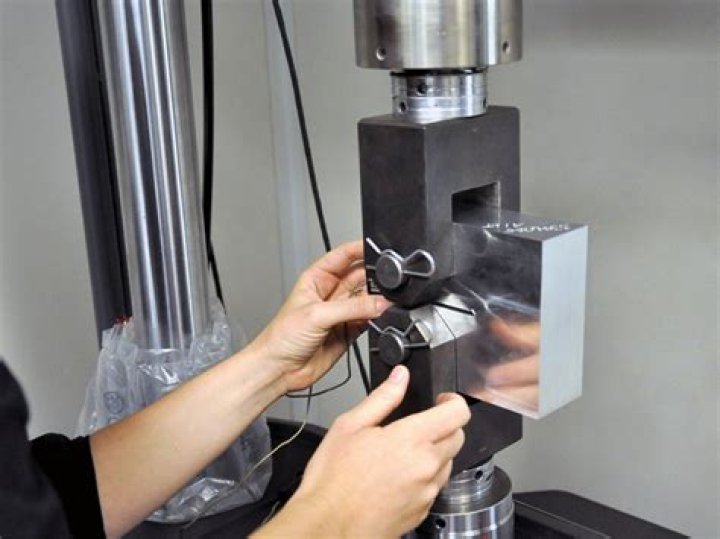

Fatigue tests are performed to measure the reduction in stiffness and strength of materials under repeated loading and to determine the total number of load cycles to failure. Fatigue tests are performed by repeated tension–tension, compression– compression, tension-compression or other combinations of cyclic loading.
How is fatigue strength measured?
Measurement of fatigue strength
- Stress ratio: R=σminσmax.
- The mean stress: σm=σmin+σmax2.
- The stress range: Δσ=σmax−σmin.
- The stress amplitude: σa=Δσ2.
- Amplitude ratio: A=σaσm=1−R1+R.
How is the fatigue data presented?
A common approach for quantifying fatigue life is using SN curves, which plot stress versus endurance. In standards such as BS7608 and DNVGL-RP-C203, welds are grouped based on the direction of applied stress with respect to the weld and the weld geometry.
What is R ratio in fatigue testing?
There are two general types of fatigue tests conducted. One test focuses on the nominal stress required to cause a fatigue failure in some number of cycles. The amplitude is express as the R ratio value, which is the minimum peak stress divided by the maximum peak stress. (R=σmin/σmax).
What is amplitude ratio in fatigue?
The amplitude is express as the R ratio value, which is the minimum peak stress divided by the maximum peak stress. (R=σmin/σmax). It is most common to test at an R ratio of 0.1 but families of curves, with each curve at a different R ratio, are often developed.
What does r =- 1 indicate in fatigue testing?
R=-1 Fully Reversed Stress Mininum Stress. Cyclical Stress. Maximum Stress.
What is run out in fatigue testing?
Here is a brief description of the statistical treatments of runouts in fatigue testing. A runout is a test which is interrupted before it fails. Examples include discontinued testing after 107 cycles, or specimen failure outside the gage after N cycles.
What are the different methods of fatigue testing?
TESTING TYPES There are 2 basics for a classification of the different methods of fatigue testing- 1. Sequence of the stress amplitude. 2. Nature of the test piece. 10. CLASSIFICATION BASED ON SEQUENCE OF STRESS AMPLITUDE 1. Constant Amplitude test 2. Variable Amplitude test 11.
What are the three stages of fatigue failure?
FAILURE STAGES…. It is characterized by three stages>> 1. Crack initiation 2. Crack propagation 3. Final fracture. 4. ……………. Failure always being the brittle fracture regardless it is ductile or brittle material. Mostly fatigue failure occur at stress well below the static elastic strength of the material.
What is fatigue and how does it occur?
Fatigue is the condition whereby a material cracks or fails because of repeated (cyclic) stresses applied below the ultimate strength of the material. Fatigue failure often occurs quite suddenly with catastrophic result.
What is the fatigue life of a component?
The Fatigue Life (Nf)of a component is defined by the total number of stress cycles required to cause failure. Fatigue Life can be separated into three stages where Nf = Ni + Np 1.) Crack Initiation (Ni)- Cycles required to initiate a crack. Generally results from dislocation pile-ups and/or imperfections such as surface scratches, voids, etc. 2.)
