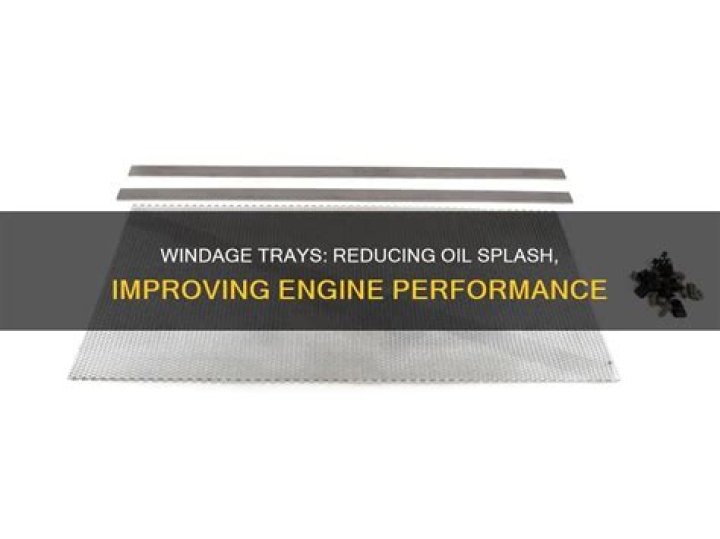

The windage tray keeps the windage around the crank from the oil in the sump area. It allows the oil coming off the crank to easily enter the sump without the windage affecting the scavenging of oil already in the sump.
Do crankshaft scrapers work?
Do they really work? Yes! Crank scrapers in various forms have been in use for at least 40 years — and not just in racing! More importantly, they are currently in use in a variety of OEM engines of both large and small displacement — from relatively low RPM V-8 engines to high RPM straight fours.
What is windage in an engine?
In automotive parlance, windage refers to parasitic drag on the crankshaft due to sump oil splashing on the crank train during rough driving, and/or dissipating energy in turbulence from the crank train moving the crankcase gas and oil mist at high RPM.
What is the meaning of wind age?
Definition of windage 1a : the space between the projectile of a smoothbore gun and the surface of the bore. b : the difference between the diameter of the bore of a muzzle-loading rifled cannon and that of the projectile cylinder.
What is in the crankcase?
The crankcase is formed by the portion of the cylinder block below the cylinder bores and the stamped or cast metal oil pan that forms the lower enclosure of the engine and also serves as a lubricating oil reservoir, or sump.
What does Kentucky windage mean?
: a windage correction made by aiming a firearm to the right or left of the target rather than by adjustment of the sights.
What is oil pan baffle?
Oil pan baffles are basically specially designed ‘ribs’ inside the pan to restrict the entire movement of oil from completely sloshing to the sides of the pan. However, oil baffles are not limited to a single design; some.
Is windage a real word?
the influence of the wind in deflecting a missile. the degree to which a gunsight must be adjusted to correct for windage. …
What is Kentucky windage?
Definition of Kentucky windage : a windage correction made by aiming a firearm to the right or left of the target rather than by adjustment of the sights.
Is crankcase the same as crankshaft?
A crankcase is the housing for the crankshaft in a reciprocating internal combustion engine. In most modern engines, the crankcase is integrated into the engine block.
How are cylinders attached to the crankcase?
The crankcase was cast at a foundry in Dayton. As viewed from the front, the box-like structure to the right of the crankcase holds the four cylinders. The cylinders are screwed from inside the box into the holes facing to the right. The combustion chambers are then screwed into the cylinders from outside the box.
What is a windage tray and how does it work?
The idea behind a windage tray is that they provide a physical barrier between the violently moving crank with the oil it’s throwing everywhere, and the oil supply, while still allowing oil to move back into the oil supply in a smoother, calmer manner. On the left is a one-way-screen type of windage tray, and on the right is a louvered style.
Should you use a louvered or mesh windage tray?
Sometimes it comes down to personal preference, but as Criscuolo points out, the solid design of the louvered windage tray also breaks up airflow as well as control oil movement. There are several ways to accomplish this, but the two main designs utilize a louvered tray and a mesh tray.
Do crank scrapers work for windage control?
Crank scrapers are probably the simplest form of windage control, and can even be implemented on stock oil pans in some cases. “We use crank scrapers in pans that either don’t have the clearance for, or don’t come standard with a windage tray,” says Criscuolo. “It captures droplets, breaks windage, and forces oil back to the pickup of the pan.”
