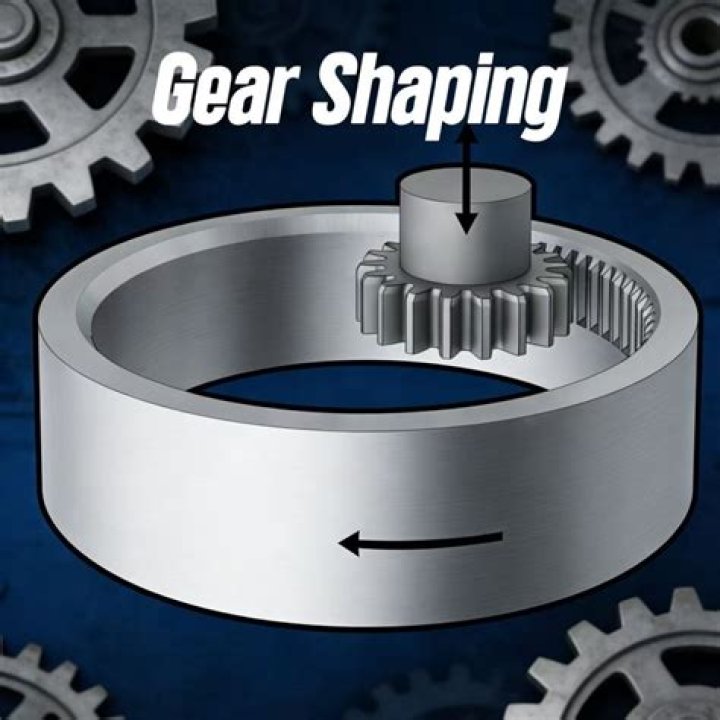

The process of gear shaping uses a toothed disk cutter which reciprocates in axial rotations. The workpiece (or blank gear) rotates on a second shaft (spindle). The workpiece is aligned with the cutter and it gradually feeds into the cutter while rotating.
What are the various processes of gear manufacturing?
Gears can be manufactured by a variety of processes, including casting, forging, extrusion, powder metallurgy, and blanking. As a general rule, however, machining is applied to achieve the final dimensions, shape and surface finish in the gear.
What type of parts can be made using gear shaping?
Gear shaping is used for cutting spur and herringbone gears etc. Gear shaping cutter receives the reciprocating motion which is the principal movement. It reciprocates at a rate of 50 to 450 strokes per minute. Both cutter and workpiece rotate with the same speed.
Which type of gear shaping process is continuous?
Gear Shaping is a machinery process that involves continuous, same-plane rotational cutting. It is an accurate cutting process that produces a high surface finish on both external and internal teeth. Shaping can generate many gear types including spurs, involute splines, helical, herringbones, and racks.
What is shaping machine?
Shaping machine is a machine designed for giving desired shapes to the surfaces that may be horizontal, vertical and flat. A shaping tool is used to cut in curves, different angles, and many other shapes. The cutting tool is used to give the shape to the hard surface of metal or wood by removing the excess material.
What is gear shaper used for?
A gear shaper is a machine tool for cutting the teeth of internal or external gears, it is a specialised application of the more general shaper machine.
What is difference between gear shaping and gear hobbing?
Shaping is a more traditional gear cutting method where a “blank gear” (one that won’t be used for non-cutting purposes) is rotated alongside an incomplete gear as a template. The hobbing process works by using a hob to cut the grooves or teeth into a blank gear.
Who invented shaper machine?
Samuel Bentham
History. Samuel Bentham developed a shaper between 1791 and 1793. However, Roe (1916) credits James Nasmyth with the invention of the shaper in 1836. Shapers were very common in industrial production from the mid-19th century through the mid-20th.
What are shaping processes?
Shaping is a separate manufacturing process that, like planing, is designed to remove material from a workpiece. In shaping, the cutting tool rotates while the workpiece remains stationary. Shaping is used to change the size and shape of a workpiece. Like planing, it will remove material from the workpiece.
What is gear shaping and how does it work?
Gear shaping is one of the most popular production choices in gear manufacturing. While the gear shaping process is really the most versatile of all the gear manufacturing methods and can cut a wide variety of gears, certain types of gears can only be cut by this process.
What is the manufacturing process to produce a gear?
The manufacturing process to produce a gear essentially consist of: material selection, blank preshaping, tooth shaping, heat treatment, and final shaping. Only by carefully integrating of the various operations into a complete manufacturing system can an optimum gear be obtained.
What is gear cutting and how is it done?
Cutting is done only in the downward stroke, the upward stroke is only a return movement. The main difference of this method with the previous one is that once the full length of the rack is utilized the gear cutting of operation is stopped to bring the gear blank to its starting position so that another pass of gear cutting can be started.
How does the shaping process work?
The Shaping Process – A Quick Review of the Working Principle. In the shaping process, cutter and workpiece represent a drive with parallel axes rotating in mesh (generating motion) according to the number of teeth in both cutter and workpiece (Fig. 1), while the cutter reciprocates for the metal removal action (cutting motion).
