The purpose of checking or degreeing-in the camshaft in the engine block is to determine whether or not the camshaft is installed in the correct relationship or phasing with the crankshaft. However, the most important step in phasing a camshaft is finding absolute T.D.C. of the #1 cylinder piston.
Is Cam Degreeing necessary?
Degreeing a cam ensures it performs up to its performance potential. 2. Piston-to-valve interference: Leading camshaft companies such as Comp Cams can now predict piston-to-valve clearance problems in advance. Degreeing a cam will catch these errors, which helps to prevent avoidable parts failures.
How do you read camshaft specs?
Understanding Camshaft Specifications
- LIFT. Lift refers to maximum valve lift.
- DURATION. Duration is the angle in crankshaft degrees that the valve stays off its seat during the lifting cycle of the cam lobe.

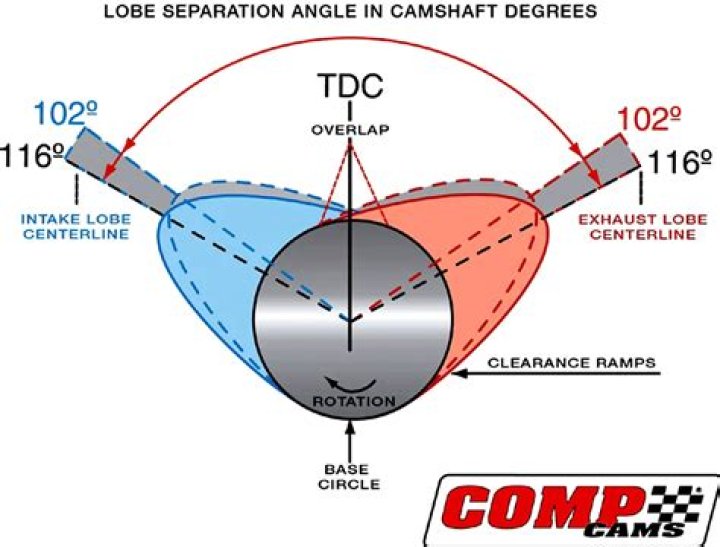

- LOBE SEPARATION.
- OVERLAP.
- CENTERLINES.
- ADVANCE/RETARD.
What happens when you advance camshaft timing?
Advancing or retarding a camshaft’s timing from its original “zero” position causes the valve events to happen either earlier or later in the engine’s cycle. A camshaft that is advanced four degrees will cause each opening and closing event to occur four degrees of rotation sooner than before.
How does cam timing work?
The cams open (lift) the valves for a certain amount of time (duration) during each intake and exhaust cycle. Opening the intake valve while the exhaust valve is still open may cause unburnt fuel to exit the engine, leading to lower engine performance and increased emissions.
Do you have to degree a camshaft?
The simplest way to degree a camshaft is when the crankshaft assembly is easy to rotate. You can accomplish this with only the # one cylinder piston with rings and connecting rod installed. Having the crankshaft disconnected from the clutch is helpful.
Why to advance a camshaft?
Advancing ignition timing causes the spark plug to fire earlier whereas an advanced camshaft will cause the intake and/or exhaust valves to open and close earlier in the engine cycle. Changing either affects engine performance, but a camshaft that is properly installed in an advanced position can noticeably improve performance.
How do you identify a camshaft?
Locate the ID number on the camshaft. It is typically located in the center of the cam between the lobes. The ID number will consist of either eight or nine digits; the last four numbers identify the cam and its specific application. Match the number to a Chevrolet camshaft part number listing.
How to degree a cam?
There are two popular methods for degreeing a cam: (1)using the opening and closing figures at.050” tappet lift offthe base circle of the cam; (2) using the intake centerlinemethod.
