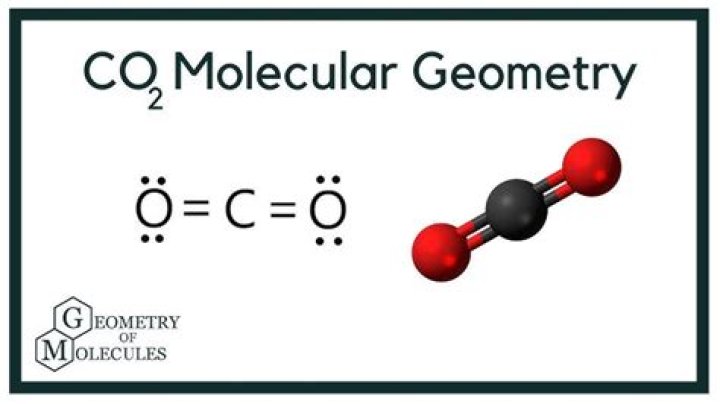

CO2 has 2 electron domains, resulting in a linear electron domain geometry. Both electron domains are bonding pairs, so CO2 has a linear molecular geometry with a bond angle of 180°.
What is the molecular geometry of PH3?
Overview: PH3 electron and molecular geometry Because the center atom, Phosphorous, has three P-H bonds with the hydrogen atoms surrounding it. The H-P-H bond angle is 107 degrees in the tetrahedral molecular geometry. The PH3 molecule has a tetrahedral geometry shape because it contains three hydrogen atoms.
What is the molecular shape and polarity of CO2?
Carbon dioxide is a linear molecule with two polar bonds. Water is a bent molecule with two polar bonds. Carbon dioxide will not be polar because both dipole moments are equal in magnitude (since they are both carbon oxygen bonds) and arranges symetrically about the central atom in a linear geometry.
Is PH3 tetrahedral?
Shape of PH3 is trigonal pyramidal. Molecular geometry around phosphorous atom is tetrahedral. Total valence electrons pairs around phosphorous atom is four.
Why is CO2 a nonpolar molecule but CO is polar?
Since carbon and oxygen have different electronegativities, the electrons are not shared equally between the two atoms. But the geometry of CO2 is linear so that the two bond dipole moments cancel and there is no net molecular dipole moment. Thus, the molecule is non-polar.
What is the molecular geometry of PO(OH)_3?
There are lone pair (s) around the central atom, so the geometry of PO (OH)_3 is B. The Lewis diagram for XeO_3 is: The electron-pair geometry around the Xe atom in XeO_3 is There are lone pairs around the central atom, so the geometry XeO_3 is is
Is PO(OH)3 polar or nonpolar or ionic?
PO(OH)3 – Phosphoric acid – also H3PO4 : First draw the Lewis dot structure: Electron geometry: tetrahedral. Then draw the 3D molecular structure using VSEPR rules: Decision: The molecular geometry of PO(OH)3 is tetrahedral with asymmetric charge distribution on the central atom. Therefore this molecule is polar.
How to draw the Lewis dot structure of PO(OH)3?
First draw the Lewis dot structure: Electron geometry: tetrahedral. Then draw the 3D molecular structure using VSEPR rules: Decision: The molecular geometry of PO(OH) 3 is tetrahedral with asymmetric charge distribution on the central atom. Therefore this molecule is polar.
What is the molecular geometry of seh2 and NH3?
There are lone pair (s) around the central atom, so the geometry of SeH2 is . C. The Lewis diagram for NH3 is: The electron-pair geometry around the N atom in NH3 is tetrahedral . There are 1 lone pair (s) around the central atom, so the geometry of NH3 is tetrahedral .
