For 741: 1MHz (approx.)
What is the typical open-loop gain of 741 op-amp at very low frequencies?
Current–Feedback Amplifiers For instance, the popular 741 op amp has ao ≈ 2 × 105 and fa ≈ 5 Hz. where fA is the closed-loop bandwidth, and ft, = aofa is the open-loop unity-gain frequency, that is, the frequency at which |a| = 1.
What is the open-loop gain of a 741 operational amplifier?
200,000 V/V.
The widely used 741 op-amp has a typical open loop gain of 200,000 V/V.
What is the typical open-loop gain A of IC 741?
Op amp 741 IC or Operational Amplifier 741 IC
| Parameters | Typical Range | Ideal Value |
|---|---|---|
| Open Loop Gain(A) | 105 to 108 | ∝ |
| Input Resistance(Ri) | 105 to 1013 | ∝ |
| Output Resistance(Ro) | 10 to 100 | 0 |

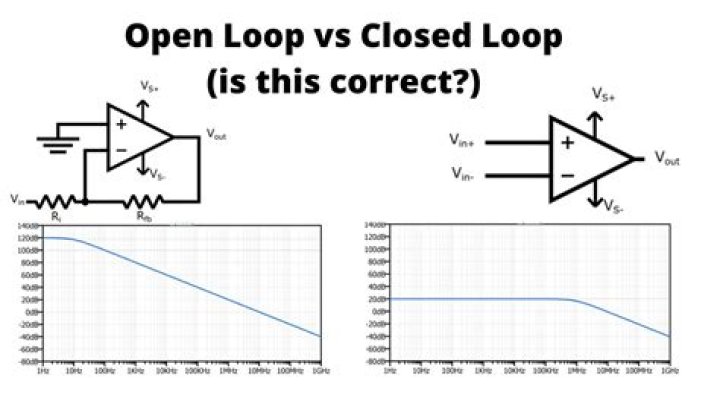

What is the frequency response of an op amp?
At very low frequencies, the op-amp applies the maximum open-loop gain, which we can call ADC to distinguish it from the gain at higher frequencies. As frequency increases, gain decreases, with the prominent transition from stable gain to decreasing gain occurring at the corner frequency, which in this case is 10 Hz.
What is open-loop gain of an op amp?
The open-loop dc gain (usually referred to as AVOL) is the gain of the amplifier without the feedback loop being closed, hence the name “open-loop.” For a precision op amp this gain can be vary high, on the order of 160 dB (100 million) or more.
What is open-loop gain of op amp?
What is the gain of a 741 op-amp?
about 2,00,000
741 Op-Amp Characteristics The frequency range of amplifier signals for IC 741 op amp is from 0Hz- 1MHz. The voltage gain of the IC 741 is about 2,00,000.
What does a 741 op-amp do?
The most common Op-Amp is the 741 and it is used in many circuits. The OP AMP is a ‘Linear Amplifier’ with an amazing variety of uses. Its main purpose is to amplify (increase) a weak signal – a little like a Darlington Pair. The OP-AMP has two inputs, INVERTING ( – ) and NON-INVERTING (+), and one output at pin 6.
What is the response rate of a 741 op amp?
The long lived and still very popular 741 op amp has an open loop breakpoint around 6Hz. Beyond this the response falls at a rate of -6dB/octave or -20dB/decade. Note: an octave is a doubling in frequency, and a decade is a ten-fold increase in frequency and therefore these two figures are two ways of expressing the same characteristic.
What is the open loop breakpoint of an op amp?
The open loop breakpoint, i.e. the frequency at which the gain has fallen by 3 dB is often only a few Hz. The long lived and still very popular 741 op amp has an open loop breakpoint around 6Hz. Beyond this the response falls at a rate of -6dB/octave or -20dB/decade.
What are the applications of IC 741 op amp?
Below are the applications of IC 741 Op Amp across different use cases: Amplifiers: 741 IC is mostly used to amplify signals of varying frequencies ranging from DC to higher radio frequencies. It is also used in frequency selective amplifiers which filter out signals of unwanted frequencies, E.g. tone control systems in stereo and Hi Fi systems.
How to achieve a flat frequency response curve in op amp?
In this way, very flat frequency response curves can be achieved within the required bandwidth. Closed feedback loop op amp gain and frequency response. When designing an op amp circuit, a figure known as the op amp gain bandwidth product is important.
