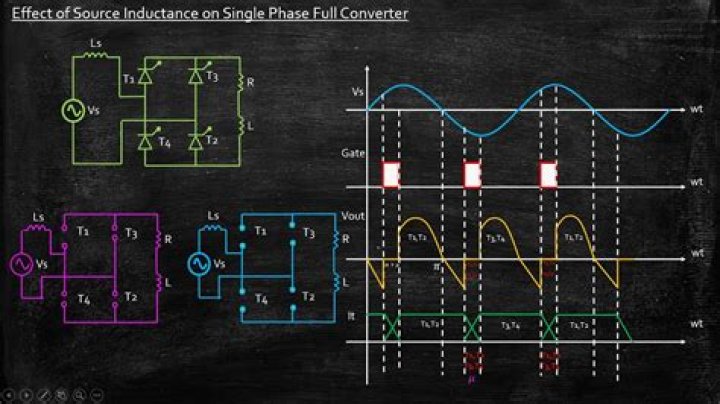

Source inductance has a significant impact on the converter performance because its presence alters the output voltage of the converter. As a result, the output voltage reduces as the load current reduces. In addition, the input current and output voltage waveforms change significantly.
What is the effect of source inductance on converter?
The presence of source inductance does have significant effect on the performance of the converter. With source inductance present the output voltage of a converter does not remain constant for a given firing angle. Instead it drops gradually with load current.
What is the effect of chopping frequency on the load ripple current?
A. chopping frequency on load ripple current:Speaking very generally, for a fixed inductance increasing the switching frequency will decrease the inductor ripple current and usually the output voltage ripple. It will increase switching losses and decrease efficiency.
Why capacitor and inductor are used in buck converter?
The inductor and capacitor are used to control, store and transfer energy from the input to output depending on the state of the switch, either on or off. For the Buck converter to operate to a specific set of output parameters the inductor and capacitor must be sized correctly.
What is the role of source and load inductance in chopper circuits?
Step Up Chopper In the circuit, a large inductor L is connected in series to the supply voltage. Capacitor maintains the continuous output voltage to the load. The diode prevents the flow of current from load to source. When the chopper is ON, supply voltage VS is applied to the load .
Which type of filter is used in DC DC converters?
Simple LC passive filters are among the common filters for DC-DC converters. They can attenuate the high frequency noise from the power supply and can also suppress the switching noise to go back to the power supply.
How do you increase the efficiency of a boost converter?
In this paper, the parallel connection of diodes and IGBT switches in the boost converter circuit is good way to increase the efficiency of this converter. Also, it makes the switches of the converter share the same thermal and conduction losses and thus, it can increase the output power of the converter.
What is the most efficient DC to DC converter?
Higher input voltage for a DC-DC converter limits the input current requirement, which in turn lessens the need for a low source resistance. From a systems standpoint, the conversion of 5V to 2.5V may be far more efficient than the conversion of 3.3V to 2.5V.
How would the input frequency affect the ripple height?
Assuming there is a sizable filter capacitor attached to the rectifier, the input frequency increases the interval between peaks decreases and the ripple amplitude reduces as the droop between peaks is reduced.
How does frequency affect boost converter?
in Dc-Dc converters for example a boost converter, when you increase the switching Frequency, you will see that the ripple of inductance current and capacitance voltage reduce. A higher switching frequency will result in lower ripple current. Then a smaller buffer inductance can be used.
How does source inductance affect the performance of a power converter?
Source inductance has a significant impact on the converter performance because its presence alters the output voltage of the converter. As a result, the output voltage reduces as the load current reduces. In addition, the input current and output voltage waveforms change significantly.
How to verify the effect of the source impedance on converter stability?
To verify the effect of the source impedance on converter stability, it is possible to analyze the roots of the characteristic Eq. 15 and, by the Nyquist criteria, ensure that these will fall in the left half plane of complex domain. The characteristic equation can be written as:
How does a power converter increase the input power?
For the converter to sustain the output power, it will increase the input current by a quantity, ΔI I, so that the input power stays constant at P I. Assuming infinitesimal variation for V I and I I, it is possible to write: Where:
Why does a switch-mode DC-DC converter present negative incremental input impedance?
A switch-mode dc-dc converter, regardless of its topology, presents negative incremental input impedance. This can be better understood through the following qualitative reasoning. A dc-dc converter works to maintain a constant output voltage, Vo, at a certain level of power, Po.
