Show interfaces gives you a detail overview of the specific interface your requesting. Show ip interface just gives you a quick summary of the layer 3 characteristics of the interface. mobri09 wrote: Show interfaces gives you a detail overview of the specific interface your requesting.
What does show ip interface do?

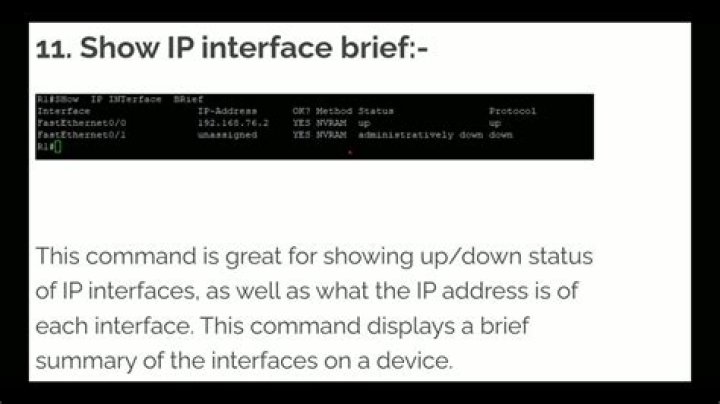

The show ip interface command provides tons of useful information about the configuration and status of the IP protocol and its services, on all interfaces. The show ip interface brief command provides a quick status of the interfaces on the router, including their IP address, Layer 2 status, and Layer 3 status.
Which information is displayed when using the show ip interface brief command?
The command show ip interface brief shows the IP address of each interface, as well as the operational status of the interfaces at both Layer 1 and Layer 2. In order to see interface descriptions and speed and duplex settings, use the command show running-config interface.
Does ip show interface?
To get a detailed listing of all the IP-related characteristics of an interface, use the show ip interface command. A common use for this command is to view any secondary addresses that have been assigned to an interface (they do not show up in the standard show interface output).
What is the command to check bandwidth?
Right-click Command Prompt and choose Run as administrator. In the Command Prompt, enter netstat -o -n and then press Enter. Under Active Connections, look at the PID (Process ID) column, and record any PID numbers that are repeated for many IP addresses. A PID with many connections may be using a lot of bandwidth.
What is the default bandwidth of this interface?
In the case of a serial interface, the default bandwidth is 1,544 K (or a full T1 circuit). However, you could have a fractional T1 circuit, and the default may be incorrect. As you can see, setting the correct bandwidth on each interface is very important when it comes to routing protocols choosing the right router.
Which has the highest bandwidth?
The Difference Between Fiber and Copper The bandwidth differences are, effectively, the difference between photons and electrons. Copper uses electrons for data transmission, while fiber uses photons. Light is faster than electrical pulses, so fiber can transmit more bits of data per second and offer higher bandwidth.
Which interface is the fastest?
To summarize the above data, the connection types would result in the following, from fastest to slowest.
- Thunderbolt (up to 40 Gbps)
- USB 3.1 (10 Gbps), then USB 3.0 (5 Gbps)
- eSATA (6 Gbps)
- Firewire (6 Gbps)
- Gigabit Ethernet (1 Gbps)
- USB 2.0 (480 Mbps)
- Ethernet (100 Mbps)
What is the difference between show interface and show IP interface?
The show interfaces displays information related to the interface iself. Regards. show interface and show ip interface should generally show output for the same number of interfaces. If show interface, for you, shows less interfaces than show ip interface then I imagine it’s the software that you’re using.
How to show interface on Cisco routers?
Show Interface on Cisco Routers On a Layer 3 router, the show interface command is equally important to obtain crucial information about each interface for various purposes. Let’s see three cases of the command: Router0# show ip interface brief
What is the difference between sh ip int and SH int?
The diff is obvious. Basically the “sh ip int” allows you to see the status of all the protocols for that interface. Whereas the “sh int” shows you more of the physical attributes of the interface. Best way to learn this is just what Jsteve did – look at the output!!
How to display information about the IP interface in Linux?
As you can see, this command displays information related to the interface itself. On the other hand, if you want to see infromation about the IP Services that have been applied to the interface, like IP Access Control Lists (inbound or outbound), DHCP IP Helper Address, uRP, IP CEF, etc, you use the #Show Ip Interface command.
