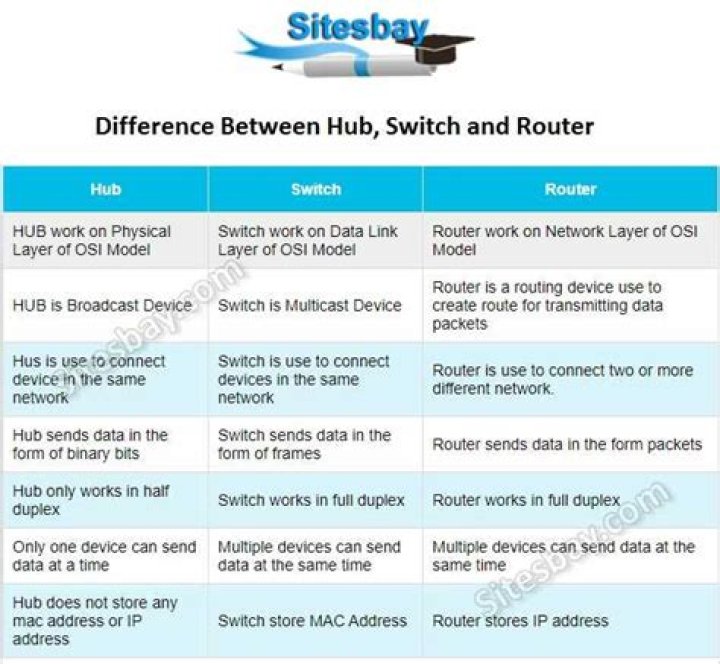

The key difference between hubs, switches and bridges is that hubs operate at Layer 1 of the OSI model, while bridges and switches work with MAC addresses at Layer 2. Hubs broadcast incoming traffic on all ports, whereas bridges and switches only route traffic towards their addressed destinations.
What is the main purpose of hub bridge router and switch?
There are various network devices such as hubs, switches, and routers used for the purpose. They are termed as a network bridge with multiple ports that which use media access control (MAC) addresses to receive and forward the data to the destination devices.
What is the difference between a hub and a bridge?
Hub is network device which is used for connecting number of devices. Bridge is also a network device which is used to connect two different LAN working on same protocol. There are multiple ports are used in Hub. But in bridge one port for incoming and another port for outgoing.
What is difference between switch and bridge?
A bridge connects smaller network segments to form a large network, and it also relays frame from one LAN to another LAN. On the other hand, the switch connects more network segments as compared to the bridges. This is a basic difference between bridge and switch.
Which is better a hub or switch?
Switch is more efficient than the hub. A switch can join multiple computers within one LAN, and a hub just connects multiple Ethernet devices together as a single segment. Switch is smarter than hub to determine the target of the forwarding data.
Why is a bridge better than a hub?
A hub transmits the data to each device connected to it, it broadcasts the data. On the other hand, a bridge is more intelligent which checks and filter data before forwarding it, this mechanism significantly reduce the network traffic and improve security.
Is Bridge better than switch?
Firstly, a bridge can connect fewer LAN, while a switch can connect more networks compared to the bridge. Bridge in networking connects two similar networks and manages the flow of network data. Switch in networking can perform data transmission between multiple port pairs at the same time.
What is the difference between a bridge and a router?
Key Differences Between Bridge and Router Bridge functions at Data link layer while router operates at the Network layer of the OSI model. The bridge can relay frame from one segment to another whereas Router store and forward packets. Routers are not transparent to the end stations.
What is better switch or hub?
The Switch is better than the Hub because it is more intelligent. For example, Port A needs to send data to Port B, the hub will simply flood all available ports, while swicth will forward the data to appropriate port.
What is the difference between an Ethernet hub and a switch?
Ethernet switch. It differs from an ethernet hub: While a hub will send incoming data packets to all ports, a switch understands the packets’ addressing scheme and will send any data packet only to its destination port, thus limiting the number of collisions (data sent at the same time).
