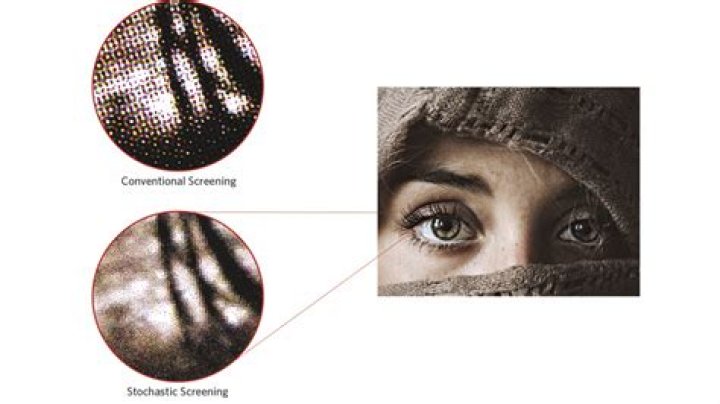

A type of digital halftone screening which varies the pattern of dots while keeping the size of the dots constant. In contrast, conventional halftone screening varies the size of the dots while keeping their frequency per line constant.

What are the benefits of using stochastic screening?

FM/Stochastic Screening

  • The Benefits.
  • 1 – No screen angle moiré
  • 5 – Greater tone and color stability as SIDs naturally vary during press run.
  • 7 – Faster drying.
  • 9 – Tonal and color stability when misregistration occurs.
  • Color stability through the press run.
  • Faster Ink Drying.
  • LPI Integrity.

Which screening works best in mid tone?

In general FM screening are more suitable for details images, highlights, and shadows. AM screening performs better in mid-tones. FM are more consistent in its ink delivery, therefore, some say that it is able to produce a very stable appearance.

What is the disadvantage of the stochastic screening method?

Stochastic screening can be demanding to print (a 10 micron spot = 1% dot @ 300 lpi), there is an increased tendency for ink emulsification and blanket piling, dot gain is significantly higher and tighter process controls are required. Mis-registration on press is harder to judge and correct.

What is AM screening in printing?

The AM SCREENING today is undoubtedly mostly employed to reproduce halftones in industrial printing technologies like Offset, typography and flexo. The AM SCREEENING is based on graphic grid where a dot stays fixed in its position in the center of any grid cell.

What is halftone screen printing?

halftone process, in printing, a technique of breaking up an image into a series of dots so as to reproduce the full tone range of a photograph or tone art work.

What is XM screening?

Hybrid AM screening (a.k.a. XM screening) is a method to compensate for resolution issues in the print production process in either plate, plate imaging, processing, press condition, or a combination of those areas.

What is AM and FM in printing?

normal viewing distance, the dots of a printed image create an optical illusion of a continuous tone image. There are two ways by which a con- tinuous tone image is transformed into a halftone image prior to printing on the press: amplitude modulated (AM) and frequency modulated (FM) screening.

What is stochastic trading?

The premise of stochastics is that when a stock trends upwards, its closing price tends to trade at the high end of the day’s range or price action. Stochastics is used to show when a stock has moved into an overbought or oversold position.

What is stochastic screening or FM screening?

The stochastic screening or FM screening instead uses a fixed size of dots (for example, about 25 micrometres) and a distribution density that varies depending on the color’s tone.

How is a stochastic screening plate made?

The creation of a plate with stochastic screening is done the same way as is done with an AM/XM screen. A tone reproduction compensation curve is typically applied to align the stochastic screening to conventional AM/FM tone reproductions targets (e.g. ISO 12647-2).

What are the benefits of FM screening?

One of the little known benefits of FM screening is that it helps the presswork dry faster. With FM screening, the tones are built with many small dots – effectively a “mist” rather than puddles of ink.

What is the difference between AM/XM and FM screens?

Given the same final presswork tone value, an FM screen utilizes more halftone dots than an AM/XM screen. The result is that more light is filtered by the ink and less light simply reflects off the surface of the substrate.
