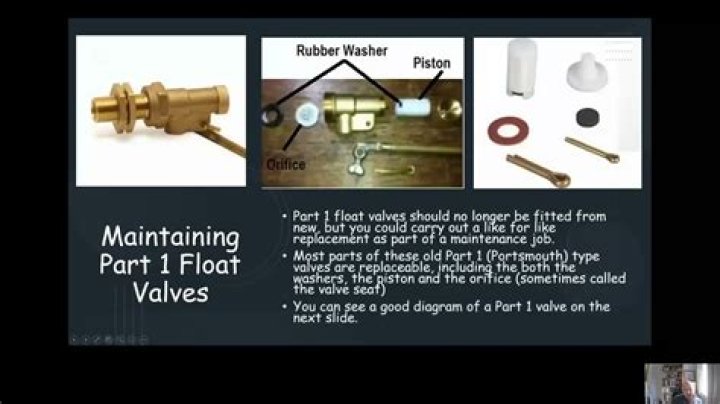

Part 1 and Part 2 ball valves – the main differences On a Part 1 or ‘Portsmouth’ valve, the outlet is on the underside of the valve. However, on a Part 2 or ‘diaphragm’ valve, the outlet is on the top. Water is directed down into the cistern via a small plastic spout which screws onto the valve body.
How does a ball valve work in a water tank?
A ballcock works through using a float with an arm attached that sits on top of the water. As the float rises, the arm pivots round a pin and opens and closes a valve. As the float rises, the valve closes until the required water level is reached and, at this point, the flow is completely shut off.
How do you fit a ball valve on a water tank?
How to Fit a Ball Valve in Your Cold Water Tank
- Turn Off Water. To start, turn off the water at the mains.
- Unscrew Feed pipe.
- Detach Feed Pipe.
- Undo Retaining Nut.
- Insert New Ball Valve.
- Reattach Feed Pipe.
- Check for Leaks.
Where is the ball valve and expansion cistern?
The cistern is usually found in the loft, the small tank. If dry then the cistern will need to be refilled. To refill the cistern simply tap the ball valve, the water should start to fill the cistern and stop when there is just enough water to float the ball valve.
What Is A Part 3 ball valve?
A Part 3 ball valve or diaphragm ball valve is a ball valve made to British Standard specification 1212, Part 3. It consists of a plunger and a diaphragm washer inside a plastic housing. When the water level in the cistern rises, the float arm pushes the plunger into the valve.
What is water tank ball valve?
A ballcock (also balltap or float valve) is a mechanism or machine for filling water tanks, such as those found in flush toilets, while avoiding overflow and (in the event of low water pressure) backflow. The float is often ball-shaped, hence the name ballcock.
Why is my loft water tank overflowing?
Typical cause – a faulty ball valve The most common reason for a cold water tank to overflow is a faulty ball valve. As the water level in the cistern rises, the float pushes a washer onto the valve seating – a plastic nozzle inside the valve body. This stops the flow of water into the cistern.
How do I stop my water tank from overflowing?
Turn off the water feed and drain the water First, you’ll need to stop the flow of new water into the tank and drain it so you can work. To turn the water feed off on a toilet cistern, use the isolation valve. This is a valve located on the water pipe that leads into the cistern.
What is a ‘ball’ valve?
Although these types of valves are often referred to a ‘ball valves’, the ‘ball’ actually refers to the typical shape of the float, however the float can be any shape – narrow cisterns with limited space inside will often use narrow, non-spherical floats.
How does a slide valve on a water tank work?
When the washer on the end of the slide valve seals the valve nozzle, the water supply is shut off. Then, as the water in the tank falls, the slide valve is moved away from the valve nozzle and water is allowed to flow in to the tank so filling it up.
How do I adjust the level of water in the tank?
There are three commonly used methods for adjusting the arm, and thus the level of water in the tank: The most common method is by just physically bending the solid brass arm between the float and the valve.
What happens if you put a low pressure nozzle on a tank?
A low pressure nozzle fitted in a mains water fed, the valve will not close property thus causing water to flow in to the tank/cistern when it should be shut off. Using a high pressure nozzle in a gravity fed system will cause the tank to fill up very slowly and probably shut the water off below the required level.
