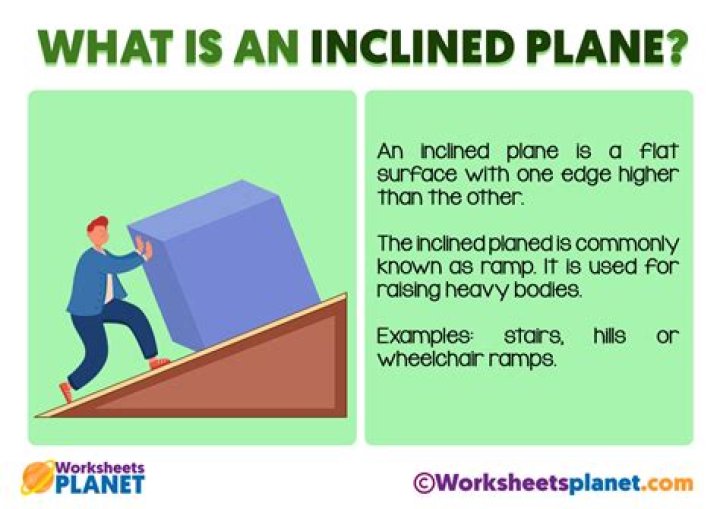

The definition of an inclined plane is a surface that is at an angle against a horizontal surface. An example of an inclined plane is a ramp. One of the simple machines; a sloping surface such as a ramp such that an object can be raised with less effort than being lifted vertically.
What is the angle of inclined plane?
The angle of friction, also sometimes called the angle of repose, is the maximum angle at which a load can rest motionless on an inclined plane due to friction, without sliding down. This angle is equal to the arctangent of the coefficient of static friction μs between the surfaces.
What is inclined plane short answer?
Simple Machines | Short/Long Answer Questions Solution: An inclined plane is a rigid sloping surface over which heavy loads can be raised or lowered to a certain height or depth. Therefore, an inclined plane acts as a force multiplier. Thus, it can be used to lift heavy loads.
What angle is an inclined plane of inclination 30?
A particle is projected from the bottom of an inclined plane of inclination 30^@. At what angle alpha (from the horizontal) should the particle be projected to get the maximum range on the inclined plane. =45∘+30∘2=60∘.
What is inclined plane Class 9?
Inclined Planes. An inclined plane, also known as a ramp, is a flat supporting surface tilted at an angle, with one end higher than the other. The inclined plane is one of the six simple machines and it is used as an aid for raising or lowering a load.
What is an inclined plane give two example?
Examples of inclined planes are ramps, sloping roads and hills, plows, chisels, hatchets, carpenter’s planes, and wedges. The typical example of an inclined plane is a sloped surface; for example a roadway to bridge at a different height.
How do you describe an inclined plane?
inclined plane, simple machine consisting of a sloping surface, used for raising heavy bodies. The force required to move an object up the incline is less than the weight being raised, discounting friction. The steeper the slope, or incline, the more nearly the required force approaches the actual weight.
What is an inclined plane in physics?
In physics, we refer to tilted surfaces as inclined planes. As an object travels down an inclined plane, the normal force acting on it also tilts because the normal force is a force perpendicular to the surface.
What is the input and output force of inclined plane?
For the inclined plane the output load force is just the gravitational force of the load object on the plane, its weight Fw. The input force is the force Fi exerted on the object, parallel to the plane, to move it up the plane.
How do you calculate the work done by an inclined plane?
Work is defined as the force multiplied by the displacement an object moves. The work done on the load is just equal to its weight multiplied by the vertical displacement it rises, which is the “rise” of the inclined plane The input work is equal to the force Fi on the object times the diagonal length of the inclined plane.
What is the direction of normal force on an inclined plane?
The force of gravity (also known as weight) acts in a downward direction; yet the normal force acts in a direction perpendicular to the surface (in fact, normal means “perpendicular”). The first peculiarity of inclined plane problems is that the normal force is not directed in the direction that we are accustomed to.
