The aperture efficiency ranges from 0.4 to 0.8 in practical horn antennas. For optimum pyramidal horns, eA = 0.511., while for optimum conical horns eA = 0.522. So an approximate figure of 0.5 is often used.
When the aperture of a horn antenna is increased the directivity and diffraction?
Explanation: Horn antenna is designed to improve the directivity and reduce the diffractions. It is used to properly match the waveguide to a large radiating aperture by shaping transition gradually. So, reflections are also decreased. Explanation: In horn antennas, we use Flaring technique for impedance matching.
What is flare angle in horn antenna?
Horn antenna angle of flare One of the key properties of the horn antenna is the angle at which the horn flares out. The angle of flare is defined in the diagram below and there can be a different angle for both the E-plane (E field) and the H-plane (H field. These are referred to as θE and θH.
Which of the antenna below is a rectangular aperture antenna?
Horn antenna

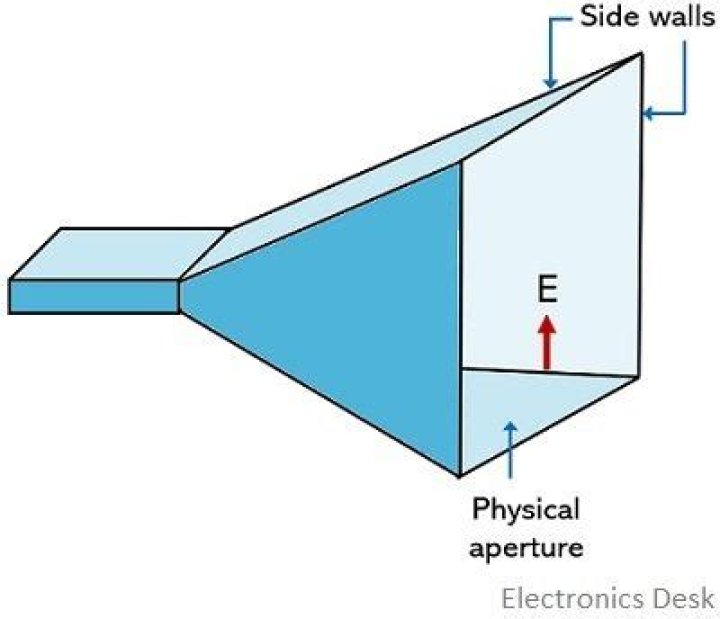

1. Which of the following antenna belongs to rectangular aperture? Explanation: The aperture of antenna at the end determines its shape. Horn antenna has a rectangular aperture.
Which of the following does not belong to the aperture antenna?
Which of the following does not belong to the aperture antenna? Explanation: Antenna with an aperture at the end is known as aperture antenna. Horn antenna, Waveguide antenna and slot antenna are examples of aperture antenna. Half-dipole is a wire antenna.
Which of the following antenna belongs to rectangular aperture?
What is an H-plane sectoral horn antenna?
In other word the antenna is the eyes and ears of any wireless communication system. In conclusion, the designed H-sectoral horn antenna is promising a directive, narrow and intense radiation in the direction of a selected path to support high coverage distances. Besides, a very high power of 21dB of gain is achieved.
What are the different types of aperture?
Two different types of apertures can be distinguished: pores and fissures (colpi). The latter are more primitive, they are elongated with pointed ends. Pores are usually isodiametric. They can also be slightly elongated but, in contrast to colpi, they have rounded ends.
How does a horn antenna radiate?
The radiation pattern of a horn antenna is a Spherical Wave front. The wave radiates from the aperture, minimizing the diffraction of waves. The flaring keeps the beam focussed. The radiated beam has high directivity.
