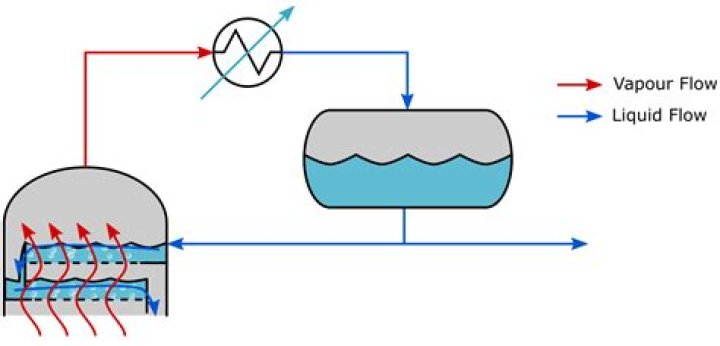

A reflux apparatus allows for facile heating of a solution, but without the loss of solvent that would result from heating in an open vessel. In a reflux setup, solvent vapors are trapped by the condenser, and the concentration of reactants remains constant throughout the process.
What is the purpose of heat under reflux?
heating under reflux is used to address this To prevent reagents from escaping, a solution with an attached condenser is needed. Vapor will flow back into the flask from the cool surface of the attached Condenser.
What should be checked before starting to heat a distillation set up?
All components of the distillation apparatus should be secured to a stable stand or rack to prevent it from falling over. All the glassware, particularly the part to be heated, should be checked for cracks prior to use.
How hot should a reflux be?
If, for example, 90°C / 194°F is the optimal head temperature for your reflux still column to collect alcohol, if the temperature increases during the distillation, the distiller can increase the reflux ratio and thereby increase the amount of ABV being sent over to the product condenser.
Can toluene be heated?
Toluene (C7H8) is a colorless liquid with a pungent odor. Stable under normal pressure and temperatures, it is highly flammable and easily ignited by sparks, heat or flame. It floats on water, boils at 232°F and freezes at –139°F.
What is the reflux apparatus used for heating a chemical reaction?
Laboratory reflux apparatus for heating a chemical reaction A mixture of reactants and solvent is placed in a suitable vessel, such as a round bottom flask. This vessel is connected to a water-cooled condenser, which is typically open to the atmosphere at the top.
What is a water bath in a reflux apparatus?
The diagram shows a typical reflux apparatus. It includes a water bath to indirectly heat the mixture. As many solvents used are flammable, direct heating with a Bunsen burner is not generally suitable, and alternatives such as a water bath, oil bath, sand bath, electric hot plate or heating mantle are employed.
How to install a reflux reflux condenser?
Attach a Keck clip to the joint. Attach tubing from a cold-water tap to the bottom-most inlet of the reflux condenser and another piece of tubing from the top-most outlet to a sink. Start flowing cold water through the outer jacket of the condenser at such a rate that the sink does not overfill. 2. Heating of Reactants
How do you assemble a reflux system?
The clean flask and condenser column are now ready to be assembled into a reflux system. With a suitable solvent dissolve the chemical reagents inside the round-bottom flask. After adding a magnetic stir bar to the flask, connect the reflux condenser by joining the ground-glass ports of the glassware. Attach a Keck clip to the joint.
