3G Vs 4G
| 3G | 4G | |
|---|---|---|
| Frequency Band | 1.8 – 2.5 GHz | 2 – 8 GHz |
| Bandwidth | 5-20 MHz | 5-20 MHz |
| Data rate | Up to 2Mbps ( 384 kbps WAN) | Up to 20 Mbps or more |
| Access | Wideband CDMA | Multi-carrier – CDMA or OFDM(TDMA) |
What is Band 40?
Band 40 is an LTE operating frequency Band. LTE is designed to work across a number of frequency bands – E-UTRA operating bands- currently ranging from 450 MHz up to 3.8GHz. The available bandwidths are also flexible starting with 1.4 MHz up to 20 MHz with Carrier Aggregation allowing use of wider multiples.
What band does Unifi use?
Band 5
unifi mobile LTE network consists of 850 MHz FDD-LTE (Band 5), 2300 MHz TD-LTE (Band 40) and TD-LTE 2600 MHz (Band 38). unifi mobile utilizes its TMgo 850 MHz LTE band 5 spectrum (refarmed from CDMA 850 MHz), and Celcom provides domestic roaming on 3G and 2G. On the 2.3 GHz WiMAX and 2.6 GHz LTE bands.

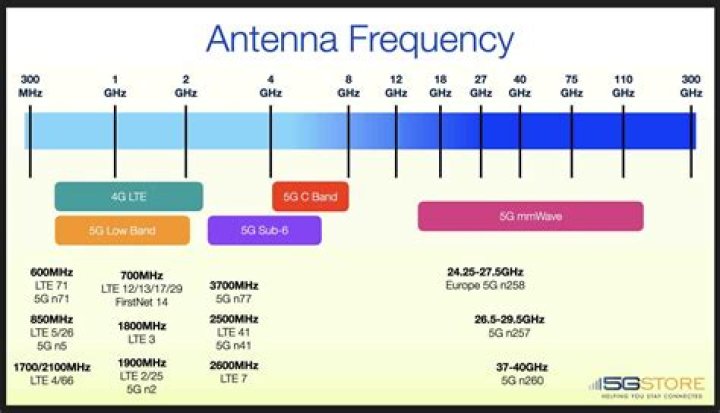

What are 5G frequencies?
The 5G spectrum is a range of radio frequencies in the sub-6 GHz range and the millimeter-wave (mmWave) frequency range that is 24.25 GHz and above. The 5G spectrum refers to the radio frequencies that carry data from user equipment (UE) to cellular base stations to the data’s endpoint.
What is band 48?
The Band 48 CBRS (Citizens Broadband Radio Service) is often referred to as the private LTE. It is the frequency band of 3.5GHz, operating in the LTE spectrum in the United States. LTE was designed to work across a wide range of frequency bands (450 MHz up to 3.8GHz) referred to as E-UTRA.
Is Unifi 5G?
The nation’s first pre-5G via Time Division Duplex (TDD) technology is part of unifi’s effort towards powering the nation with 5G connectivity. …
What is LTE band B2?
4G LTE B2 (FD 1900) Band 2 is an LTE operating frequency Band. LTE is designed to work across a number of frequency bands – E-UTRA operating bands- currently ranging from 450 MHz up to 3.8GHz. LTE is developed to support both the time division duplex technology (TDD) as well as frequency division duplex (FDD).
What is the frequency range of WiMAX?
Different bands are available for WiMAX applications in different parts of the world. The frequencies commonly used are 3.5 and 5.8 GHz for 802.16d and 2.3, 2.5 and 3.5 GHz for 802.16e but the use depends upon the countries: The spectrum is very fragmented and varies from country to country.
What is the global licensed spectrum for WiMAX?
There is no uniform global licensed spectrum for WiMAX, however the WiMAX Forum published three licensed spectrum profiles: 2.3 GHz, 2.5 GHz and 3.5 GHz, in an effort to drive standardisation and decrease cost.
Do I need antennas for WiMAX?
This brings many benefits to those using these data links within buildings and means that external antennas are not required. Different bands are available for WiMAX applications in different parts of the world. The frequencies commonly used are 3.5 and 5.8 GHz for 802.16d and 2.3, 2.5 and 3.5 GHz for 802.16e but the use depends upon the countries:
What is the YES Network?
The Yes network is built from the ground up with an all-IP architecture, making it the first and only all-4G and all-IP network provider in Malaysia capable of offering unique services such as user ID-based unified communications as well as session concurrency for mobile data and telephony services.
