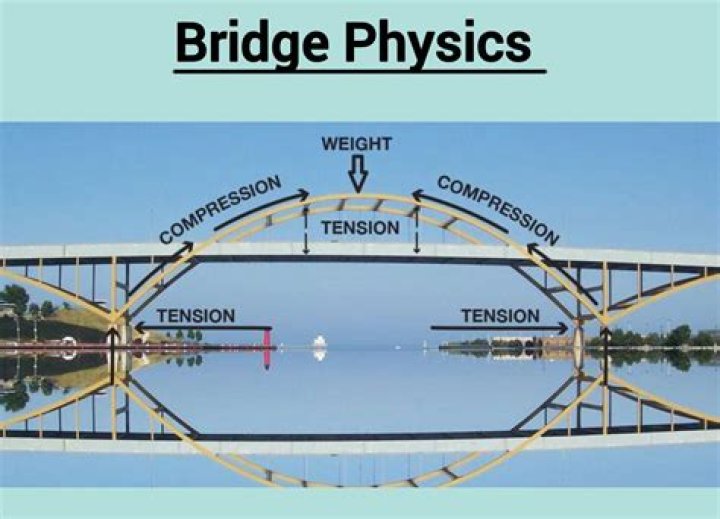

Tension vs. Compression. Tension forces pull and stretch material in opposite directions, allowing a rope bridge to support itself and the load it carries. Compression forces squeeze and push material inward, causing the rocks of an arch bridge to press against each other to carry the load.
Where is the tension and compression on a truss bridge?
A single-span truss bridge is like a simply supported beam because it carries vertical loads by bending. Bending leads to compression in the top chords (or horizontal members), tension in the bottom chords, and either tension or compression in the vertical and diagonal members, depending on their orientation.
How do compression and tension work together in a truss bridge?
Truss bridge The deck is in tension. The trusses handle both tension and comprehension, with the diagonal ones in tension and the vertical ones in compression. An arch bridge supports loads by distributing compression across and down the arch. The structure is always pushing in on itself.
What is compression and tension?
Tension is a force that stretches something. Compression is a force that squeezes something together. Materials are only useful if they can withstand forces. Force flows through a material like water flows through a pipe. Concrete is an example of a material that is strong in compression and weak in tension.
What is tension in bridges?
The answer lies in how each bridge type deals with two important forces called compression and tension. Compression is a force that acts to compress or shorten the thing it is acting on. Tension is a force that acts to expand or lengthen the thing it is acting on.
What is different between tension and compression?
Tension and compression refer to forces that attempt to deform an object. The main difference between tension and compression is that tension refers to forces that attempt to elongate a body, whereas compression refers to forces that attempt to shorten the body.
What is the difference between tension and compression?
A tension force is one that pulls materials apart. A compression force is one that squeezes material together. For example, if you pull on a strong rope, it can support a large amount of tension. If you push on a rope, it cannot resist compression very well, and just bends.
What is difference between tension and compression?
How do you find tension and compression?
If the magnitudes of a calculated force is positive and it is pointing away from the joint, you have tension. If it is negative and pointing away from the joint you have compression. You only have one unknown vertical force, CL. Its value and therefore direction will be obvious.
How does tension work on a truss bridge?
On truss bridges, a tension member is subject to forces that pull outward at its ends. Even on a “wooden” truss bridge, these members are often individual metal pieces such as bars or rods. Compressive forces push or compress together and are heavier. The individual members form a triangular pattern.
What is compressional stress in a bridge?
Compressional stress, therefore, is the opposite of tensional stress. Compression and tension are present in all bridges, and as illustrated, they are both capable of damaging part of the bridge as varying load weights and other forces act on the structure. It’s the job of the bridge design to handle these forces without buckling or snapping.
What are the forces of tension on a single span bridge?
A single-span truss bridge, with forces of tension represented by red lines and forces of compression by green lines. Early trusses were built without precise knowledge of how the loads are carried by each part of the truss.
What are the parts of a truss bridge made of?
Even on a “wooden” truss bridge, these members are often individual metal pieces such as bars or rods. Compressive forces push or compress together and are heavier. The individual members form a triangular pattern.
