Serial communication is a dependable, longstanding communications method often used in PLC networks. These communication products connect devices meeting serial, USB and Ethernet standards quickly and affordably.
What is RS232 PLC?
Simply put, a RS232 connection transmits signals using a positive voltage for a binary 0 and a negative voltage for a binary 1. But what do the PLCs use RS232 for? PLCs use RS232 to talk to other modules or even other PLCs.
What port does serial use?
The serial port standard is RS-232. This standard is used for transmitting serial communication between devices, which are usually called data communications equipment (DCE) and data terminal equipment (DTE). The serial port uses a nine-pin (DE-9) connector or a 25-pin (DB-25) connector.
What are serial signals?

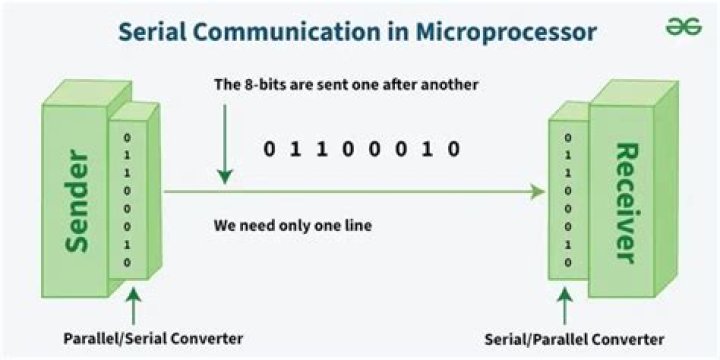

In serial communication, data is sent one bit at a time using one signal line, so in order for the receiving side to accurately receive the data, the sending side must know at what speed it is sending each bit.In RS-232C, synchronous communication and asynchronous communication standards have been defined.
Why PCI is a serial protocol?
It is called serial because data bits get serialized before they are put onto lane. Say, 32-bit PCI requires 32 wires to transfer 32 bits of data at a time, 64-bit PCI-X requires 64 wires to transfer 64 bits of data at a time and thus the same amount of data can be sent as twice as faster over it.
Is a PLC DTE or DCE?
A PLC is defined as a DTE device. The term DCE Data Communications EQUIPMENT describes the device that is connected to the DTE device such as a modem. The terms are most often used in reference to serial communications defined by the EIA RS232 standard.
What does a serial port look like?
A serial port is male in gender, and has either 9 pins or 25 pins. The shape of the port is slightly D-shaped. A serial computer port may be used for a mouse, external modem, scanner, or other linking software such as for a personal data assistant (PDA).
What is serial port and parallel port?
The main difference between a serial port and a parallel port is that a serial port transmits data one bit after another, while a parallel port transmits all 8 bits of a byte in parallel. Computers have both serial and parallel ports along with newer technology called a USB (Universal Serial Bus) port.
How does a serial port work?
Serial ports lower cable costs and make cables smaller. Before each byte of data, a serial port sends a start bit, which is a single bit with a value of 0. After each byte of data, it sends a stop bit to signal that the byte is complete. It may also send a parity bit.
What is another term for the serial port?
The serial port is a type of connection on PCs that is used for peripherals such as mice, gaming controllers, modems, and older printers. It is sometimes called a COM port or an RS-232 port, which is its technical name.
Does the PLC-5 have a serial port?
Prerequisites: Before you begin, first insure your PLC-5 has serial port (not all do.) Specifically, the new platform PLC-5/11, 5/20, 5/30, 5/40, 5/60, and 5/80 all have a 25 Pin D-Shell Serial Port. Note that the 9 Pin D Shell on the PLC-5/10, 5/12, 5/15, and 5/25 is not a serial port but instead internally tied to the DH+ terminal block.
What is port 2 used for in plc?
Parity checking and stop bits are user selectable. With this flexibility, common uses for Port 2 include PLC to PLC communications, operator interfaces, bar code readers/printers, load-cells, serial radio and telephone modems and DirectLOGIC Remote I/O.
How do I configure the Mitsubishi Q/QnA serial plc to communicate with the C-More?
The C-more panel is the master when communicating with a Mitsubishi PLC. Note: Remember to power cycle the PLC after making changes to the communication port settings. To Configure the Mitsubishi Q/QnA Serial PLC to communicate with the C-more Panel, you will first need to find the Port Settings for your Mitsubishi PLC.
How do I connect my plc to my computer?
Step 1: choose and connect to cable between your computer and the PLC. This might be a serial cable or USB or Ethernet. In our case, it’s going to be a serial cable. Step 2: set up your computer so it’s ready to connect to the PLC.
