Small Signal Transistors such as this are transistors that are used to amplify low-level signals but can also can be used as a switch. Typical hFE (DC current gain) values for small signal transistors range from 10 to 500, with maximum Ic ratings from about 80 to 600mA.
What is the replacement of transistor?
When looking for a suitable transistor replacement some of the basic transistor parameters that need to be considered include the following: Semiconductor material used: Most transistors will either be germanium or silicon. Other types are normally only used in very specialist applications.
Which transistor can be used in place of TIP32C?
TIP32C Replacement and Equivalent TIP32C transistor nearest possible equivalents are CJF32C, TIP32D, BD582, BD592, BDT32C 2N6475 2N6476, 2SB1016, MJE30C, MJE32C, MJE5195, NSP582, NSP5195, RCA30C, RCA32C, TIP62A, TIP62B, TIP62C, 2SB761B, 2SB762B, 2SB860, 2SB869, 2SB945, BD242C, BD540C, BD954, ECG292.
What is transistor TIP32C?
The TIP32C is a silicon Epitaxial-base PNP power transistor in Jedec TO-220 plastic package. It is intented for use in medium power linear and switching applications. The complementary NPN type is TIP31C.

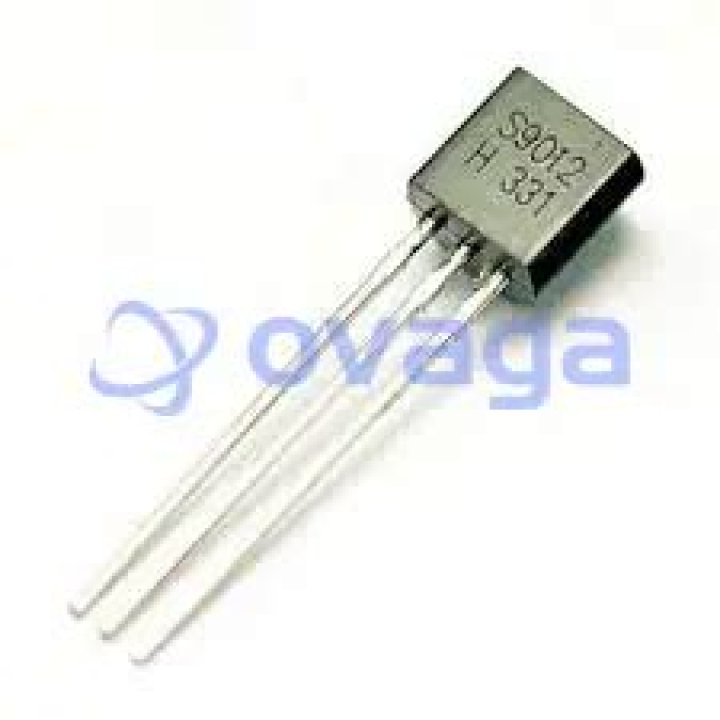

What is the replacement for the s9012 transistor?
The S9013 is a complementary NPN transistor for the S9012. Replacement and Equivalent for S9012 You can replace the S9012 with the MPS3702, MPS6535, MPS6651, MPS6651G, MPS6652, MPS6652G, MPSW51, MPSW51A, MPSW51AG or MPSW51G.
What is the power dissipation of s9012?
S9012 Datasheet, Equivalent, Cross Reference Search. Type Designator: S9012. Material of Transistor: Si. Polarity: PNP. Maximum Collector Power Dissipation (Pc): 0.3 W. Maximum Collector-Base Voltage |Vcb|: 40 V.
What is ss9012 PNP epitaxial silicone transistor?
SS9012 PNP EPITAXIAL SILICON TRANSISTOR1W OUTPUT AMPLIFIER OF POTABLE RADIOS IN CLASSTO-92B PUSH-PULL OPERATION. High total power dissipation. (PT=625mW) High Collector Current.
What is the difference between the s9012 and s9013?
The gain of the S9012D will be in the range from 64 to 91, S9012E ranges from 78 to 112, S9012F ranges from 96 to 135, S9012G ranges from 112 to 166, S9012H ranges from 144 to 202, S9012I ranges from 190 to 300. The S9013 is a complementary NPN transistor for the S9012.
