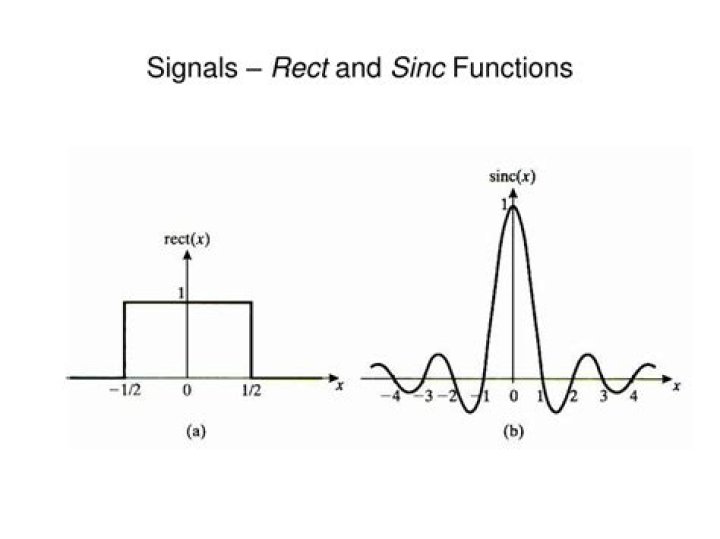

The Rect Function is a function which produces a rectangular-shaped pulse with a width of 1 centered at t = 0. The Rect function pulse also has a height of 1. The Sinc function and the rectangular function form a Fourier transform pair.
What is a rectangular function used for?
The rectangular function can often be seen in signal processing as a representation of different signals. The sinc function, defined as , and the rectangular function form a Fourier transform pair.
How do you filter a frequency domain?
To filter data in the frequency domain, we multiply the Fourier transform of the data by the frequency response of a filter and then apply an inverse Fourier transform to return the data to the spatial domain.
What is a rectangular pulse signal?
The rectangular pulse is defined as(2.22)ΠLT(t)={A-LT2≤t≤LT20otherwisewhere A is the amplitude of the pulse and L is an integer. From: RF and Digital Signal Processing for Software-Defined Radio, 2009.
What is rect in JavaScript?
Definition and Usage. The rect() method creates a rectangle. Tip: Use the stroke() or the fill() method to actually draw the rectangle on the canvas. JavaScript syntax: context.rect(x,y,width,height);
What does rect mean in math?
more A 4-sided flat shape with straight sides where all interior angles are right angles (90°). Also opposite sides are parallel and of equal length.
What are frequency filters?
A frequency filter is an electrical circuit that alters the amplitude and sometimes phase of an electrical signal with respect to frequency. The frequency separating the attenuation band and the pass is called the cut-off frequency.
What are frequency domain filters?
Frequency Domain Filters are used for smoothing and sharpening of image by removal of high or low frequency components. Frequency domain filters are different from spatial domain filters as it basically focuses on the frequency of the images. It is basically done for two basic operation i.e., Smoothing and Sharpening.
How do I use rect pulse in Matlab?
The rectangular pulse function is also called the rectangle function, boxcar function, Pi function, or gate function….Rectangular Pulse Function
- If a < x < b , then the rectangular pulse function equals 1.
- If x = a or x = b and a <> b , then the rectangular pulse function equals 1/2.
- Otherwise, it equals 0.
What is the meaning of rect?
-rect- comes from Latin, where it has the meaning “guide; rule; right; straight. ” This meaning is found in such words as: correct, direct, erect, indirect, insurrection, misdirect, rectangle, rectify, rectitude, rector, rectum, resurrection.
What are filters in the frequency domain?
There are two commonly discussed filters in the frequency domain: Lowpass filters, sometimes known as smoothing filters Highpass filters, sometimes known as sharpening filters create a blurred (or smoothed) image attenuate the high frequencies and leave the low frequencies of the Fourier transform relatively unchanged
What is frequency domain transfer function in signal processing?
Frequency-domain transfer functions describe the relationship between two signals as a function of s. For example, consider an integrator as a function of time. From Table 3-1, the integrator has an s -domain transfer function of 1/ s.
What is a rectangular pulse in the time domain?
As shown in Figure 1, the rectangular pulse in the time-domain manifests as a sinc function that extends infinitely on either side of the frequency spectrum (though only a portion of the frequency response is plotted in the figure) and thus its spectrum is not band-limited.
What are the basic steps in DFT filtering in MATLAB?
The following summarize the basic steps in DFT Filtering (taken directly from page 121 of Digital Image Processing Using MATLAB ): Generate a filter function, H, of size PQ (1) x PQ (2) …. 2. Lowpass and Highpass Frequency Domain Filters
