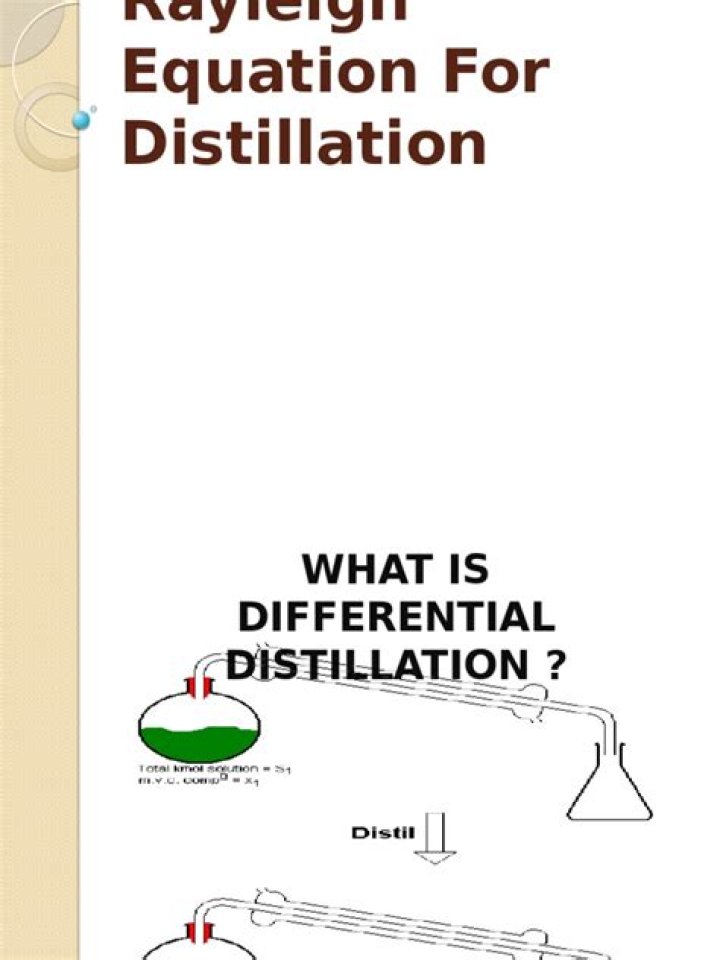

An equation that relates the quantity to the concentration of the more volatile component in *batch distillation. The equation is formulated from an unsteady-state material balance in which vapour leaving the still is in equilibrium with the liquid.
How does Rayleigh distillation work?
Rayleigh fractionation describes the evolution of a system with multiple phases in which one phase is continuously removed from the system through fractional distillation. It is used in particular to describe isotopic enrichment or depletion as material moves between reservoirs in an equilibrium process.
Why do we use Rayleigh equation?
The Rayleigh Equation is useful in the analysis of simple distillation, as it shows how the concentration and quantity are related. As the process is unsteady state in nature, the derivation is based on a differential approach to changes in concentration with time.
What is Q in Mccabe Thiele method?
The parameter q is the mole fraction of liquid in the feed and the slope of the q-line is q / (q – 1). For example, if the feed is a saturated liquid it has no vapor, thus q = 1 and the slope of the q-line is infinite which means the line is vertical.
What is Rayleigh method in mechanical vibration?
The Rayleigh’s quotient represents a quick method to estimate the natural frequency of a multi-degree-of-freedom vibration system, in which the mass and the stiffness matrices are known. equal to the static displacement from an applied force that has the same relative distribution of the diagonal mass matrix terms.
How do you calculate fractionation?
The equilibrium fractionation factor a between liquid and vapor can be defined in two ways, which are mathematical inverses: a = Rl /Rv or a = Rl /Rv, where Rl and Rv are the isotopic ratios of the liquid and vapor, respectively.
What property of an element is responsible for isotopes fractionation?
2.1 Ligand Exchange Reactions. Isotopic fractionations are related to bond strength. Thus, stronger bonds generally favor heavier isotopes. A difference in the bond strengths of complexes in a ligand exchange reaction thus results in isotopic fractionation.
What is Q-line equation?
For a given feed condition, xF and q are fixed, therefore the q-line is a straight line with slope -q / (1-q) and intercept xF / (1-q). If x = xF , then y = xF. i.e. the q-line passes through the point (xF, xF) on the 45o diagonal.
What is the Rayleigh equation used for in batch distillation?
Determination of the residue amounts or compositions using the Rayleigh Equation is one of the more common batch distillation calculations. Another is to determine the average overhead product composition. The composition of the overhead varies with time, so the average composition is that of a mixing tank that collects all of the distillate.
What is the formula for Rayleigh equation?
The general form of the Rayleigh equation is R = R of (α − 1) where Ro is the isotope ratio (e.g., 18 O/ 16 O) of the original substrate and f is the fraction of remaining substrate. A commonly used approximate version of the equation is
What is differential distillation in chemistry?
“Differential” Distillation. Often, it is necessary to solve the integral numerically or graphically. The latter is done by making a plot of vs. x and finding the area under the curve between the initial and final concentrations. The Rayleigh equation can also be used for any two components of a multicomponent system.
What is the Rayleigh equation for carbon isotopes?
The Rayleigh equation can be expressed as: (9.19)R = R(t = 0)f α − 1. where R is the carbon isotope C13 C12 ratio and f is the fraction of the parent compound that is undegraded. Equation 9.19 is also expressed as: (9.20)∈lnf ≅ δ − δ(t = 0) where ∈ = (α-1)× 1000 and δ has the usual definition:
