When engineers need to produce parts very quickly, they use what is aptly called “rapid injection molding.” The parts produced in rapid injection molding are used for creating prototype parts for design analysis.
What are the 5 steps of injection moulding?
Major stages of injection molding
- Making a mold.
- Install the mold in a specific machine: the injection molding machine.
- Inject the softened plastic materials under high pressure under the effect of heat in the mold.
- Cooling of the whole through cooling channels within the mold.
- Eject the part.
- Repeat with the next part.
What is meant by rapid tooling?
Rapid tooling (RT) and rapid prototyping (RP) is any method or technology that enables one to produce a tool or product quickly. The term rapid tooling refers to RT-driven tooling. A prototype is a 3-D model suitable for use in the preliminary testing and evaluation of a mold, die or product.
Is injection moulding a quick process?
Injection moulding involves a high pressure injection of a polymer into a mould where it is shaped. The individual parts of this process are very short. The whole injection moulding process usual lasts from 2 seconds to 2 minutes.
What is cycle time in injection Mould?
Cycle time is the total time required to complete all the stages of the injection molding cycle. The time required to fill the mold with polymer. The injection molding machine controls the velocity (flow rate) of the molten polymer entering the mold during this stage of the cycle.
How does injection Moulding work step by step?
THE BASIC INJECTION MOLDING PROCESS
- STEP 1: THE MOLD CLOSES. Step 1 of the Injection Molding Process.
- STEP 2: INJECTION. The heated plastic is injected into the mold.
- STEP 3: COOLING.
- STEP 4: PLASTICIZING THE RESIN.
- STEP 5: EJECTION.
- STEP 6: REMOVING THE RUNNER AND PACKAGING.
What is the difference between rapid prototyping and rapid tooling?
“Rapid prototyping” refers to the various additive manufacturing methods used for rapid production of specimen components – in fact, this is where additive manufacturing originated. Rapid tooling is another technology that speeds up product manufacturing.
What are the different rapid tooling techniques?
There are two main types of rapid tooling—direct and indirect—that have different pros and cons. Some product designers will gain the most benefit from a direct rapid tooling process, while others should consider using an indirect method instead.
What is barrel in injection Moulding machine?
Barrels are normally made in four materials. Nitralloy nitride, D2, CPM 10V and Carbide. These materials handle just about any resins that can be used in the plastics industry. Nitralloy Nitride is the most common because it is used on all General Purpose application and normally comes standard on all OEM machines.
What is the process of injection molding?

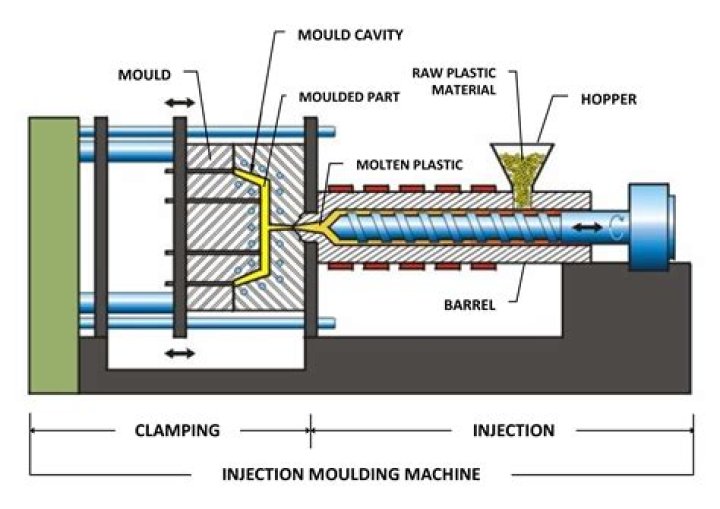

The injection molding process requires the use of an injection molding machine, raw plastic material, and a mold. The plastic is melted in the injection molding machine and then injected into the mold, where it cools and solidifies into the final part.
What are the cycles of injection molding process?
What are the cycles of the injection molding process? Clamping. Before injection of the mold with adequate material, the halves of the mold have to be closed. Injection. During the injection portion of the molding process, the hopper injects the compound into the mold. Cooling. Ejection.
What products are made from injection moulding?
Everyday Items Made By Injection Molding Bumpers and Dashboards. Whether it’s the lid on a water bottle, a plastic cup lid, or the lid of a prescription drug container, they’re all made from plastic injection molds. DVDs and CDRs. Electrical switches can be produced on a mass scale when made with injection molding systems.
What are the different types of injection molding?
Types of injection molding equipment include vertical and horizontal presses, injection cylinder and injection screw presses, hydraulic and electric presses, and other presses rated by the amount of pressure they can apply to molds. There are also hot and cold runner molding systems used with injection molding equipment.
How injection molding works, process and materials?
Mold Close. Within the most simple application,the molding machine closes the mold and applies clamp pressure.
