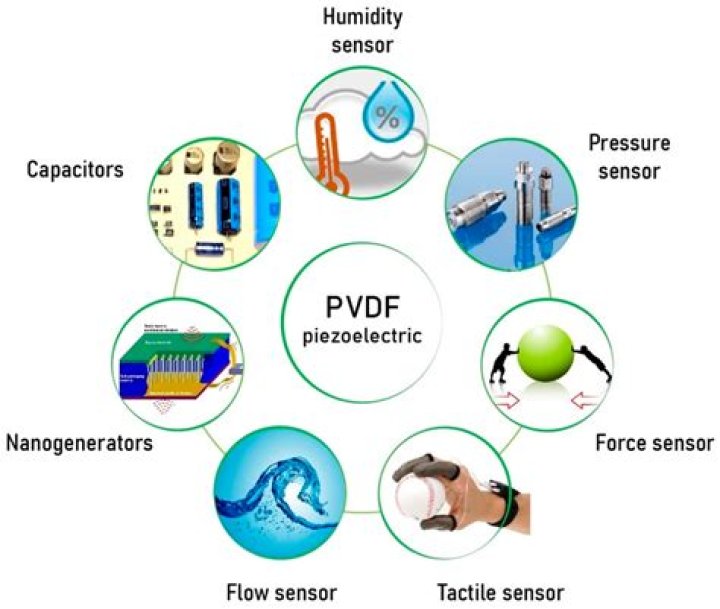

Polyvinylidene fluoride sensors (PVDF) are the sensors of choice for a wide range of measurement. applications because they have unique characteristics: – Rapid response (Nanosecond) – Large stress range (kPa to GPa) – Large signal to noise ratio.

How does a PVDF sensor work?

The PVDF piezoelectric-film sensor (shortly for PVDF sensor) is fabricated based on its piezoelectric effect, which is the ability of certain materials to generate an electric charge across its boundaries in response to applied mechanical stress [16].

What are film sensors?

Thin film sensors are precise, stable, dependable and cheap, offering numerous advantages over conventional sensors. These sensors work by gauging the pressure on a sensor which is placed against the widening walls of polyurethane or PVC tubing.

What is piezo film?

Piezoelectric film is a strong, lightweight and flexible plastic, which comes in a wide range of thicknesses and areas. As a transducer, the piezoelectric film can be molded into unique designs and can also be glued with commercial adhesives. The material includes the following properties: High dielectric strength.

What are the different types of piezoelectric sensors?

Piezoelectric sensors measure the electrical potential caused by applying mechanical force to a piezoelectric material….Types

  • piezoelectric accelerometers.
  • piezoelectric force sensors.
  • piezoelectric pressure sensors.

Is PVDF a fluorocarbon?

However, as long as Arkema continues to protect its right to the trade name “Kynar 500,” the generic way to describe it is “polyvinylidene fluoride” or “PVDF.” This is not exactly the same thing as “Fluorocarbon resin.” PVDF is one of several Fluorocarbon resins. Another trade name used for PVDF is Hylar 5000.

How do thick film sensors work?

Thick-film sensors, like thin-film sensors, use four resistors grouped to form a Wheatstone bridge. The resistance structures are “printed” onto a base element (e.g. ceramic base) using thick-film technology, and afterwards they are burnt-in at high temperature.

What is the difference between thin and thick film?

Thin film has a thickness in the order of 0.1 um (micrometer) or smaller, while thick film is thousands times thicker. However, the main difference is the method used to apply the resistive film onto the substrate. Thick film resistors are produced by firing a special paste onto the substrate.
