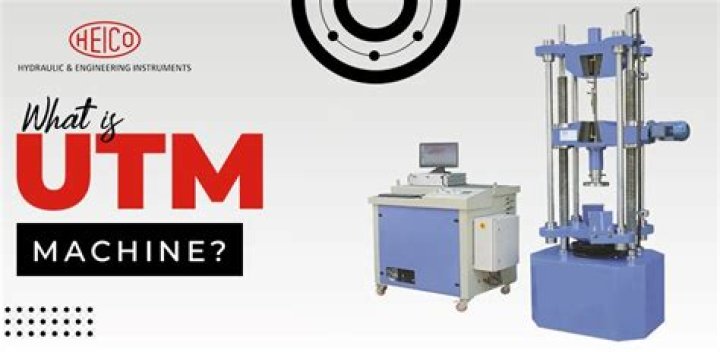

The Wikipedia entry for a Universal Testing Machine (UTM) defines it as: “A universal testing machine is used to test the tensile stress and compressive strength of materials.
What are the uses of the universal testing machine and explain its uses?
A universal testing machine is used to assess the strength of materials. A universal testing machine offers enhanced control and stability during a materials testing process. A universal testing machine also helps ensure accuracy and repeatability.
What are the components of universal testing machine?
Components of a universal testing machine commonly include a load frame for support, a load cell for force measurement measurement, an upper and lower crosshead to hold the test product, a mechanism for measurement of extension, and a device for reading measurements.
What are the test that can be conducted in universal testing machine?
The Various Tests a Universal Testing Machine can Perform Universal testing machines allow you to stretch (tensile), bend (flexural), squash (compression) or pull (shear) a sample until it breaks.
Why it is called UTM?
A Universal Testing Machine (UTM) is used to test both the tensile and compressive strength of materials. Universal Testing Machines are named as such because they can perform many different varieties of tests on an equally diverse range of materials, components, and structures.
What kind of tests we can do with UTM?
The standard tests performed by UTM are:
- Tensile Test.
- Compression Test.
- Adhesion Tests.
- Pull-Out Tests.
- Bending Test.
- Hysteresis Test.
How much is a universal testing machine?
Medium force (ranging from 50 kN to 150 kN max force) universal test machines range in price from $25,000 to $48,000. High force (ranging from 300 kN to 2,000 kN max force) universal test machines range in price from $58,000 to $166,000. The higher the max force of the machine of the more metal is required.
What care should be taken while placing a specimen in a universal testing machine?
2) Keep Clear of Small Gaps Small test specimens often require small gaps between grips and compression platens. Avoid putting your fingers or hands in small gaps when loading specimens. Use tongs, forceps, or a hemostat to load your specimens instead.
What is the least count of UTM machine?
Analogue Universal Testing Machines ( Model : TUN )
| MODEL | TUN-100 | TUN-1000 |
|---|---|---|
| 3’rd Range (kN) | 0 – 25 | 0 – 250 |
| Least Count (kN) | 0.05 | 0.5 |
| 4’th Range (kN) | 0 – 10 | 0 – 100 |
| Least Count (kN) | 0.02 | 0.2 |
Who invented the universal testing machine?
engineer Tinius Olsen
From the 1850’s on, various devices for testing materials had been developed, but the goal of a truly universal testing machine proved elusive until 1880, when Philadelphia engineer Tinius Olsen, a Norwegian immigrant who had just lost his job, devised and patented what became known as the Little Giant.
What is UTM source?
UTM or Urchin Tracking Module is a simple code that can be attached to any URL to generate Google Analytics data for digital campaigns. Specific to Google Analytics, UTM helps track the progress of the campaign on all online platforms. Description: The data can be tracked in Google Analytics through a source. Adwords.
Why UTM is called universal testing?
What is the capacity of universal testing machine?
2000 kN
| 1. Capacity | : 2000 kN |
|---|---|
| 2. Max. grip to grip distance | : 1100 mm (in tensile) : 950 mm (in compression) |
| 3. Max. grip to grip distance | : ø 20 to 90 mm : 50 mm/min |
| 4. Grip for rods | : 300 mm |
| 5. Max. loading Speed | : 850×850 mm |
What care should be taken while performing a test on UTM?
The grips used in the testing machine must be properly serrated so that there is no chance of slippage of the specimen. If the specimen breaks due to any reason, other than the tensile stress, the test procedure should be discarded, and a new test must be performed on a fresh specimen.
What is the least count of CTM machine?
Digital Compression Testing Machines (CTM) Microprocessor Based
| AIC-CTMMD-W25T. | MICROPROCESSOR BASED. 0250 KN. |
|---|---|
| It has capacity of 500 KN. Provided with Microprocessor Based Digital Load Indicator having Capacity of 0 – 500 KN with a least count of 0.01 KN. Welded Loading Unit. | |
| AIC-CTMMD-W100T | MICROPROCESSOR BASED. 1000 KN. |
What is extensometer in UTM?
UTM-515, Extensometer Extensometer is the essential equipment for measuring the elongation of specimen. It used in tensile test and sense the elongation when testing is processing. Extensometer is helpful to analysis test data at the same time, including force, elongation, time and so on.
What does a tensile test tell you?
Tensile testing is a destructive test process that provides information about the tensile strength, yield strength, and ductility of the metallic material. It measures the force required to break a composite or plastic specimen and the extent to which the specimen stretches or elongates to that breaking point.
Why universal testing machine is called universal?
The “universal” part of the name reflects that it can perform many standard tensile and compression tests on materials, components, and structures (in other words, that it is versatile).
How do I get UTM source?
How to Build UTM Codes in HubSpot
- Navigate to your Analytics Tools.
- Open the Tracking URL Builder.
- Open the Tracking URL form to create a new UTM code.
- Fill in each attribute of your UTM code and click “Create.”
- Use the shortened link in your marketing campaign.
- Measure your success.
How do I use UTM source?
You can create UTMs using the Google UTM generator, then paste the links into your social media posts.
- Head to the Google Analytics Campaign URL builder.
- Enter the URL of the page you want to link to, then enter the values for the parameters you want to track.
