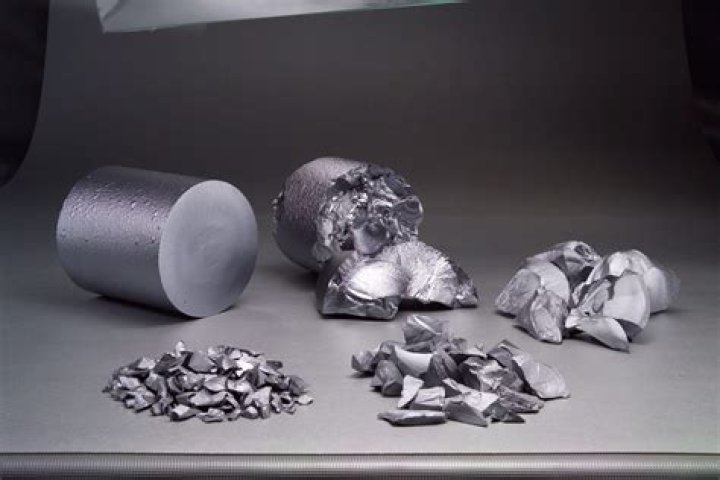

Polysilicon is produced from metallurgical grade silicon by a chemical purification process, called the Siemens process. This process involves distillation of volatile silicon compounds, and their decomposition into silicon at high temperatures.
How is polysilicon deposited?
Undoped polysilicon layers are deposited via low pressure chemical vapor deposition (LPCVD). This is the most common Poly-Si deposition method and depending on the application, some require doping after deposition. The process takes place in a low temperature furnace between 560°C – 650°C.
What is polysilicon resistor?
Practically, the polysilicon resistor is a material which is widely used throughout the semiconductor industry. Generally, the doped polysilicon is used as a precise analog resistor element [1-3]. These polysilicon resistors are made by n+ and p+ source/drain (S/D) ion-implantation.
Why is polysilicon used in CMOS?
Undoped polysilicon has very high resistivity, approximately 108 ohm/Cm. So, polysilicon is doped in such a way that its resistance is reduced. The other reason for selecting polysilicon is that the threshold voltage of MOS transistor is correlated with the work function difference between the gate and the channel.
Why is polysilicon a gate material?
Thus, poly-crystalline silicon (polysilicon) became the modern gate material because it is the same chemical composition as the silicon channel beneath the gate oxide. In inversion, the work-function difference is close to zero, making the threshold voltage lower and ensuring the transistor can be turned on.
What are the different levels of purity of polysilicon?
Depending on how thoroughly TCS is distilled and whether impurities on the surface of the polysilicon chunks are etched off, different levels of polysilicon purity can be achieved: solar grade for multicrystalline cells ( multi grade ): 99.99999% (7N) to 99.999999% (8N);
Why is the polysilicon process so resilient to new approaches?
One major reason why the process has turned out to be so resilient against new approaches is the rise of the polysilicon industry in China. Initially, China-based polysilicon plants obtained the key equipment, notably hydrochlorination and chemical vapor deposition reactors, from providers in the United States, Germany and Italy.
How do you mix polysilicon chunks with FBR?
Mixing polysilicon chunks with granules from an FBR in a fifty-fifty ratio can shorten the time to fill a crucible by 40% and increase the charge weight by 30%. It was only a short heyday that upgraded metallurgical-grade (UMG) silicon enjoyed on the polysilicon market, with ten manufacturers operating at the zenith in 2008.
Why is the Siemens process still the dominant technology for polysilicon?
Despite more than a dozen attempts to develop less expensive alternatives, the Siemens process has remained the dominant technology to produce highly pure polysilicon. Low-cost plants in China have driven the production costs of the process down to unprecedented levels. The sixty-four-thousand-dollar question: When was the following statement made?
