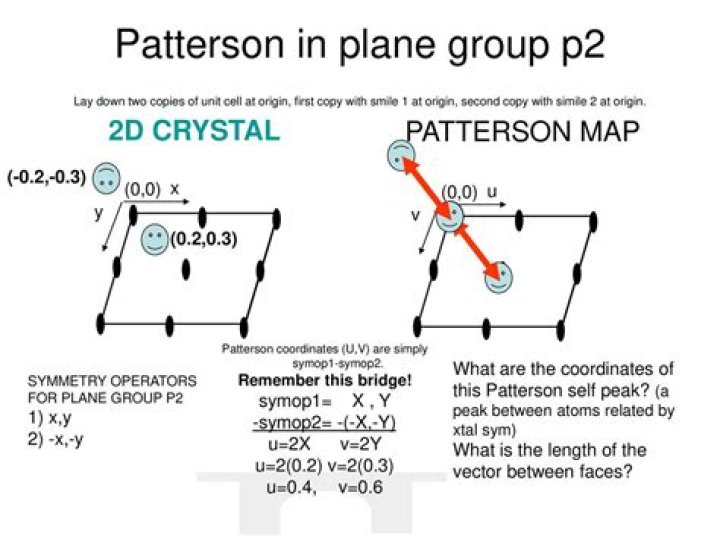

The symmetry of the Patterson Function (the symmetry of Patterson space) is higher than the one of the electron density function (the crystal), so that if the crystal symmetry can be represented by one of the 230 space groups, the corresponding Patterson symmetry will be represented by only 24 space groups.
What are Harker sections?
Harker sections are portions of the Patterson map that contain a large proportion of the readily interpretable information because they contain many such Harker peaks (vectors between space-group equivalent atoms).
Which region of the diffraction pattern gives the highest resolution in crystallography?
The resolution of spots collected on the detector increases as the diffracted angle increases. Hence, the highest resolution will be at the edge of the detector, and if one determines the diffracted angle required, the distance of the detector from the crystal can be adjusted accordingly.
How do you solve crystal structures?
Structure Solution
- A crystal structure is considered solved when the phases of enough reflections are known well enough to reveal most if not all of the atoms in the unique part of the unit cell.
- where gh is the scattering factor of the squared atom.
- where S(h) stands for the sign of reflection h.
What is centrosymmetric crystal?
In crystallography, a centrosymmetric point group contains an inversion center as one of its symmetry elements. Point reflection is a similar term used in geometry. Crystals with an inversion center cannot display certain properties, such as the piezoelectric effect.
What is a good resolution for crystallography?
High numeric values of resolution, such as 4 Å, mean poor resolution, while low numeric values, such as 1.5 Å, mean good resolution. 2.05 Å is the median resolution for X-ray crystallographic results in the Protein Data Bank (135,762 on May 19, 2019).
Which Orbital has the highest electron density?
px orbital
The px orbital has maximum electron density along the x-axis and its nodal plane is yz plane.
How are electron density maps created?
Crystallography Produces Electron Density Maps An X-ray crystallographic experiment produces an electron density map for the average unit cell of the protein crystal. The amino acid (or nucleotide) sequence of the crystallized polymer(s) is known in advance.
How do I change the space group in Olex2?
If you believe that your space group selection is wrong you can change this under the Work|Solve tab in the Space Group section. If you know the space group you want to try you can type it into the dropdown box and press ENTER. If you are unsure of the space group Olex2 can suggest likely possible space groups for you.
How do you know if a molecule is centrosymmetric?
If the symmetry group contains the inversion symmetry (according Gerald’s definition), then is a centrosymmetric system, otherwise is a non-centrosymmetric system. A structure with a center of symmetry is centrosymmetric. When the structure is with no center of symmetry is non-centrosymmetric.
What is Pat Patterson’s Fourier transform?
Patterson introduced a function in 1934 which is a Fourier transform of the set of squared but not phased reflection amplitudes (h k l F 2 ). This function does not produce an electron density map of the contents of the unit cell but rather a density map of the vectors between scattering objects in the cell.
What is the range for the rotation function of Patterson map?
The sums Σ are done over vin a spherical shell of the Patterson map that excludes the self-peak and the very long vectors. Typically, 4Å ≤ |v| ≤ 20Å, is a good range for the rotation function.
What makes a Patterson map centrosymmetric?
The Patterson map contains equal peaks corresponding to the vector from atom A to atom B and the vector from atom B to atom A. You should be able to appreciate how this fact makes Patterson maps centrosymmetric. You can also see that the vector from atom A in one cell to atom A in neighboring (or any other) cells will always fall on the origin.
What is the Patterson map of a crystal with no internal symmetry?
If we had a crystal with no internal symmetry, i.e. a P1 crystal, that contained heavy atoms at the two positions above, the difference Patterson map would contain a peak at the origin (0, 0, 0) and peaks corresponding to the vectors between the two heavy atoms (.25, -.22, .39) and (-.25, .22, -.39).
