Cable Definitions Paper-insulated, lead-covered cables (PILC) consist of a stranded copper conductor, oil-impregnated kraft-paper tapes helically wound over the conductor, copper shielding tapes, and an extruded layer of lead.
What is EPR cable?
Ethylene Propylene Rubber is a generic term for a wide range of polymers based on copolymers of ethylene and propylene. EPR is widely used as an insulation material for electric cables due to its high dielectric strength but it is also used as a sheathing material exhibiting excellent ozone and weathering resistance.
What is a paper cable?

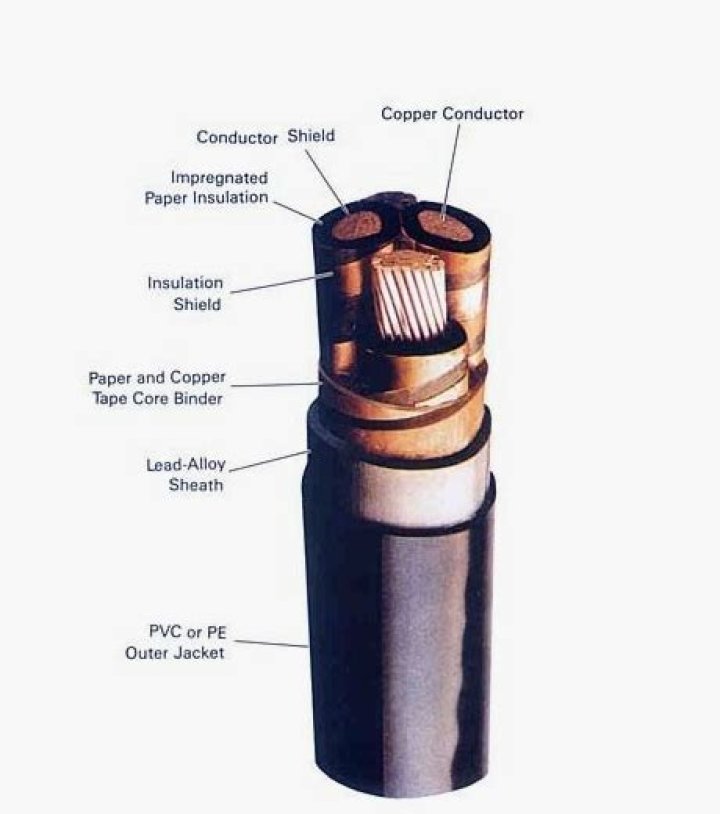

Generally paper-insulated cables consist of copper or aluminium conductors. This cable insulated with lapped paper tapes, impregnated with insulating compound and sheathed with lead alloy or corrugated aluminium.
Is paper an insulating material?
Yes, paper is an insulator. In fact, it is said to be a good insulator.
What is the meaning of PILC cable?
Specification for Impregnated Paper–Insulated Metallic– Sheathed Cable, Solid Type. See Conductor Size and Operating Voltages, and Operating Conductor Temperature data below. PILC cables are used in power distribution and other industrial circuits, where it is necessary to splice into existing PILC cable system.
What is PVC cable?
PVC (Polyvinyl chloride) is widely used in electrical cable construction for insulation, bedding and sheathing. Cable with a PVC insulation or sheathing is flame retardant, which is an important consideration for electric cables in most applications.
What is TR XLPE cable?
Additive tree-retardant crosslinked polyethylene (TR-XLPE) has been utilized as medium-voltage power cable insulation for over 25 years, and has been recognized for excellent performance in retention of breakdown strength in both accelerated aging and field-service conditions.
What paper insulation is used in cable Mcq?
54. Rubber is most commonly used insulation in cables.
What is polymeric insulated cable?
Polymer insulated electrical cable consists of a metallic, low resistance conductor covered with polymeric insulation, and a sheath or jacket formulated according to their mechanical properties to protect the cable from the environment.
What is insulation paper made of?
Introduction. Insulating papers used for conductor wrapping are produced from 100% wood pulp according to many international standards.
What are the applications of lead-coated cables?
Paper insulated, lead covered cables can be used in many electrical distribution and reticulation applications including: The petrochemical industry. Mining a special construction for shaft installation is available with water blocking and flame retardancy). Fire and explosion hazardous areas.
What is the use of paper insulated cables?
Paper-insulated cable now restricted to minor uses. It’s now used as extensions to older circuits or in special industrial locations for the purpose. Now the use of paper-insulated cables for LV power circuit has been superseded completely by polymeric cables in all sectors throughout the world.
What is a metallic sheath on a paper cable?
A common feature of all paper cables is a metallic sheath, normally extruded lead or aluminium, enclosing the paper-insulated core (s). The main purpose of the metallic sheath is to give the paper insulated cores complete protection from the environment outside the cable.
What are the different types of PILC cable types?
2 multicore PILC (HV2-4) Three-to-one heatshrink joint paper insulated cables (HV2-5) Stub tee joint screened and belted paper insulated multicore cables (HV272)- Lay-on tee joint for screened and belted paper insulated cable (HV3-1) Cold pour resin tee joints for PILC cables (HV3-31)
