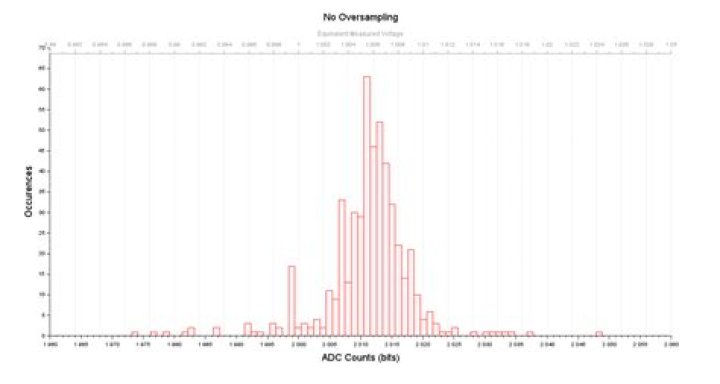

What is oversampling in ADC?

Oversampling is a cost-effective process of sampling the input signal at a much higher rate than the Nyquist frequency to increase the SNR and resolution (ENOB) that also relaxes the requirements on the antialiasing filter.

What is oversampling an image?

Oversampling means the light is spread over more pixels than needed to achieve full resolution thus increasing imaging time often by a large factor. Properly sampling means a pixel size 1/2 to 1/3 that of your typical seeing. So if your seeing is 2.4″ (about mine) then a pixel size of 0.8″ to 1.2″ would be about right.

How do I increase my ADC resolution?

The accuracy of a low-resolution ADC can be improved by oversampling the input signal using the ADC and subjecting it to low-pass filtering, using a FIR filter to filter out the quantization noise, and then decimating it.

What is oversampling in digital image processing?

In an image, oversampling means using a high-resolution image sensor as compare to camera output image resolution. One of the oversampling applications in image processing is known as zooming.

Why do we use oversampling?

Oversampling is capable of improving resolution and signal-to-noise ratio, and can be helpful in avoiding aliasing and phase distortion by relaxing anti-aliasing filter performance requirements. A signal is said to be oversampled by a factor of N if it is sampled at N times the Nyquist rate.

What is 8x oversampling?

The audio industry has now standardized at an 8x oversampling rate, which means a CD’s sampling frequency is increased to 352.8kHz before it enters the digital-to-audio converter. This effectively moves the aliasing frequencies to values near 300kHz, much higher than the original 22.05kHz.

How does oversampling improve ADC resolution?

Oversampling and averaging is done to accomplish two things: improve SNR and increase the effective resolution (i.e., increase the effective number of bits of the ADC measurement). Producing a lower noise floor in the signal band, the oversampling and averaging filter allows us to realize 16-bit output words.

How can I improve my ENOB?

To increase the effective number of bits (ENOB), the signal is oversampled, or sampled by the ADC at a rate that is higher than the system’s required sampling rate, fs.

What is oversampling ML?

Random oversampling involves randomly selecting examples from the minority class, with replacement, and adding them to the training dataset. Random undersampling involves randomly selecting examples from the majority class and deleting them from the training dataset.

What is oversampling in VST?

Oversampling inside plugins is meant to eliminate, or reduce, the amount of unwanted distortion. Plugins that benefit from oversampling include compressors, limiter, clippers, amp simulators, saturators, and exciters, but not usually equalizers or time-based processors, unless they also provide some kind of saturation.

Does oversampling improve accuracy?

Oversampling provides more measuring points allowing averging over a higher number of samples to improve precision.

How is oversampling applied to embedded ADCs?

The oversampling approach can be applied to just about any MCU with an embedded ADC, so to see exactly how it’s done, we use a 16-bit RISC-based MCU (Maxim’s MAXQ2010) to demonstrate the averaging and oversampling control. The MAXQ2010 incorporates a 12-bit, 312-ksps ADC with 1 LSB of INL and DNL.

What does oversampling mean in photography?

In photography, oversampling would act on the sensor in front of the ADC by a pixel density that is considerably higher than the highest frequency spatial signal transmitted by the lens. This entry was posted in Architecture, Image quality, Photoessays, Travel photography and tagged Image quality, ISO invariance, Noise .

How can I increase the resolution of analog-to-digital (ADC) measurements?

Oversampling and averaging can increase the resolution of a measurement without resorting to the cost and complexity of using expensive off-chip ADCs. This application note discusses how to increase the resolution of analog-to-digital (ADC) measure- ments by oversampling and averaging.

What are the advantages of oversampling and averaging?

 Oversampling and averaging can be used to increase measurement resolution, eliminating the need to resort to expensive, off-chip ADCs.  Oversampling and averaging will improve the SNR and measurement resolution at the cost of increased CPU utilization and reduced throughput.
